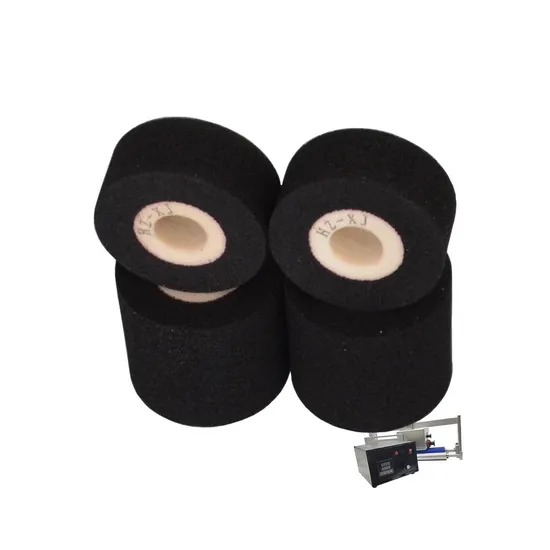

Black 36*16mm Melt Ink Roller for Date Coding Using in Food and Pharmacy Industries

Product Description

Our Hot Ink roller mainly used on MY-380F , Friction / Electric Ink roll coding machine, and Sealing machine to print date and batch number. We have two types: M( Medium temperature: 90-130ºC) and H (High temperature: 120-160ºC).
It is used to print date and batch number on food or medical packagings.
It delivers high quality printing on flexible packaging films foils and labels for continuous operations.
Our Hot Ink roll has the advantages of clear printing, strong adhesion, easy to color, quick-dry. The following is our ink roller printing effect:
It can be used on the following machine to print: MY-380F coder, Friction Ink roll coder and Sealing machine. The working principle is to melt the solid ink roller and print it on the object that needs to be printed. Packaging

Usual sizes : 36*16mm , 36*32mm, 36*36mm, 36*40mm, 40*40mm, 30*25mm, 38*32mmUsual colors:black , white, red , blueAny sizes and colors can be customized according to your need.

Usual size	Quantity per box (pcs)	Quantity of boxes per carton (pcs)	Quantity percarton (pcs)	Packaging size (cm)	Weight(KGS)
36mm*16mm	24	20	480	28*29*31cm	7KG
36mm*32mm	12	20	240	28*29*31cm	8KG
36mm*36mm	12	18	216	28*29*31cm	8KG
36mm*40mm	12	18	216	28*29*31cm	8KG
40mm*40mm	12	15	180	28*29*31cm	8KG

Usage Method: Put ink roller into preheater for 10-15 minutes( if not preheater, it's ok to put it directly in ink roller printer for preheating, adjust space between code printer word wheel and hot iron roller into optimum condition.

fault	reason	solution
Printing times lack	1. low temperature 2. preheat for roller and character wheel is not enough 3. Pressure between roller and wheel is small	1. raise the temperature in a approved scope 2. Preheat for 15 min before start 3. modulate the gap
Ink pollution	1. word wheel dirty 2. roller temperature too high	1. change the character wheel 2. decrease the temperature to appropriate one.
Grooves on ink roller	3. Preheat is not enough	1. preheat above 15 min

---
