Wellon Horizontal CNC Milling Machining Center for Sale HMC500

Product Description

Product Description

Horizontal CNC Milling Machining Center HMC500

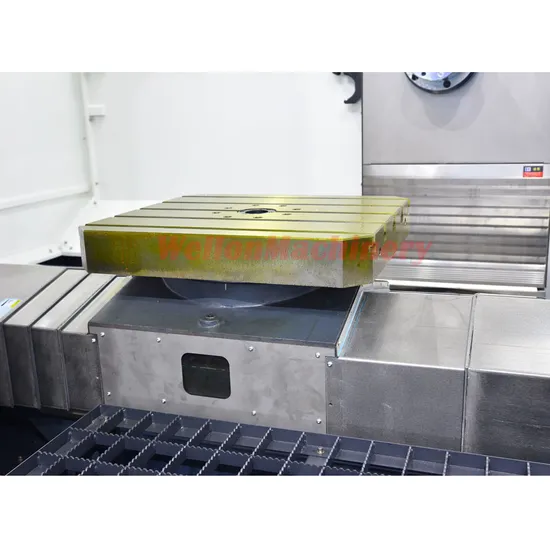

Detailed Photos
Product Parameters

Technical parameters:

Item	Specification	HMC500	HMC500/1	HMC500/2	HMC500/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table
Worktable	Worktable size	500×600mm	500×630mm	500×600mm	500×630mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	240	240	160	160
	changer worktable transmission	/	240	/	240
	Changer worktable structure	/	Rotary type	/	Rotary type
	Changer worktable time	/	24s	/	24s
	Worktable loading capacity	600kg	600kg	600kg	600kg
	Max. Swing diameter of workpiece	¢750mm	¢750mm	¢750mm	¢750mm
Travel	Worktable movement left and right(X Axis)	740mm	740mm	740mm	740mm
	Spindle head movement up and down(Y Axis)	680mm	680mm	680mm	680mm
	Column movement forward and backward(Z Axis)	650mm	650mm	650mm	650mm
	Distance from spindle center to worktable surface	120~800mm	0~680mm	120~800mm	0~680mm
	Distance from spindle nose to worktable center	130~780mm	130~780mm	130~780mm	130~780mm
Spindle (Taiwan)	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Leadscrew	X axis, Y axis(Diameter×Pitch)	40×12	40×12	40×12	40×12
	Z axis(Diameter×Pitch)	50×12	50×12	50×12	50×12
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	22/30/22 Nm	22/30/22 Nm	22/30/22 Nm	22/30/22 Nm
	B axis servo motor	8 Nm	8 Nm	12 Nm	12 Nm
	APC servo motor	/	8 Nm	/	8 Nm
Rapid speed	X , Y, Z axis	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X , Y, Z axis	0.01	0.01	0.01	0.01
	B axis	10″	10″	10″	10″
Repositioning accuracy	X , Y, Z axis	0.006	0.006	0.006	0.006
	B axis	5″	5″	5″	5″
Machine overall dimensions		2760×2375×2485	3975×2375×2485	2760×2375×2485	3975×2375×2485
Machine net weight		9000kg	10000kg	9000kg	10000kg

Standard accessories:

Fanuc 0i MF control system

24 Tool disc type ATC from Okada

Automatic chip conveyor

Nitrogen balance

Full closed cover

Automatic lubrication

Coolant system

Work lamp

Tri-color indication lamp

Air conditioner in cabinet

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
