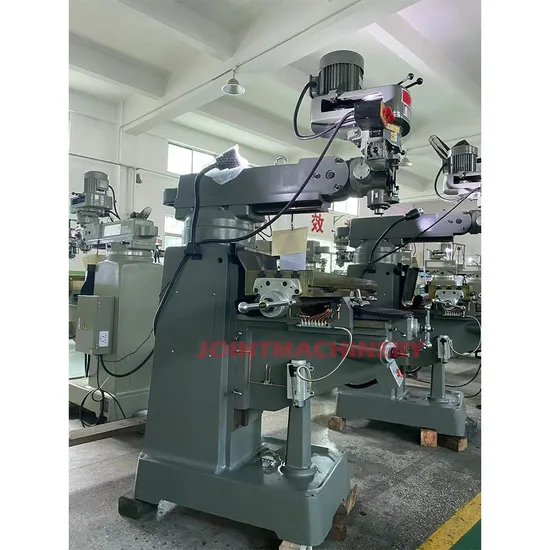

High-Performance Metal Fresadora Conventional Vertical Milling Machine for Metal Work

Product Description

Experience unmatched durability and universal adaptability with our cost-effective model, a testament to our commitment to quality.
√ Enjoy the perfect balance of affordability and excellence with our competitively priced, premium-quality product.
√ Assembled in China with top-notch Taiwan parts, ensuring exceptional performance and reliability.
√ Featuring an impressive spindle tolerance of just 0.005mm, our machine ensures precision and exactness in every operation.
√ Perfect for mold processing in household appliances and daily necessities, bringing efficiency and precision to your workflow.
1. WORKTABLE
Our worktable is the pinnacle of craftsmanship, enhanced with ultra-audio quenching, precision grinding, and meticulously scraped guides for supreme smoothness. Add a rotary table to expand its multi-functional capabilities.
2. TURRET MILLING HEAD
Our advanced turret milling head is engineered to swivel 45° forward-backward and rotate 90° left-right, ensuring versatile milling for complex angles and intricate projects with ease.
3. SPINDLE
Fitted with a high-precision R8/NT30/NT40 spindle, our machine boasts a minimal spindle runout of just 0.003mm, delivering unmatched precision and accuracy.
4. X/Y/Z AUTO FEED
Revolutionize your workflow with our automatic X/Y axis feed and electric Z-axis lift, significantly boosting efficiency and simplifying operations.
5. DRO
Elevate your precision with our adaptable 2-axis or 3-axis DRO, crafted to meet your specific requirements and enhance performance.
High-Performance Metal Fresadora Conventional Vertical Milling Machine for Metal Work

Model				6E
Table size			mm	1370*305*85
Travel		X axis	mm	950
		Y axis	mm	415
		Z axis	mm	330
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	400
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-4530
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt Angle			Forward and backward	0°
			Left and Right	±90°
Dimension			mm	1600*1850*2400
Weight			kg	1900
