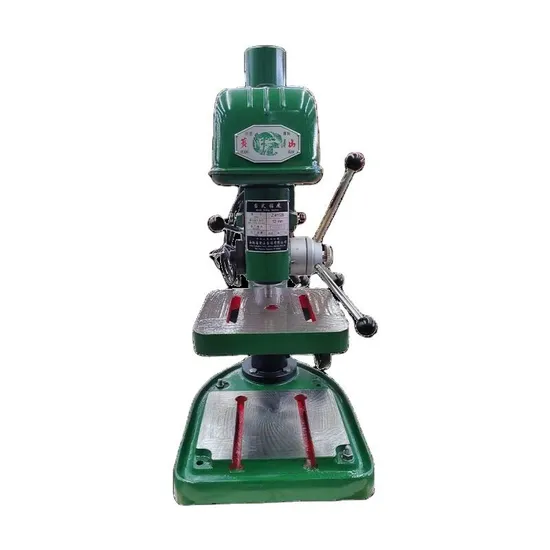

Z4116/16b Metal Stainless Steel Drilling Machine with Working Bench

US$678.00
1-99 Pieces
US$628.00
100+ Pieces

Basic Info.

Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Input Voltage
220V/50Hz
Processing Material
Metal
Rated Power
550W
Max. Drilling Capacity
16mm
Diameter of Column
70mm
Max.Spindle Travel
100mm
Spindle Speeds
480-800-1400-2440-4100 R/Min
Size of Worktable
250X300mm
Weight
115kg
Transport Package
Carton
Specification
80*43*97cm
Trademark
N/M
Origin
Henan China
Production Capacity
5000pieces/Month

Product Description


Industrial Grade Multifunctional Bench Drill
Product Description
Thickened cast iron base
Copper wire motor
Double scale
1.Multi-purpose Machine Easy to Deal with
Stable cast iron base, integrated motor powerful power and multiple functions.
2.One Machine for Multiple Purposes
Suitable for metal/wood/stone/plastic and other materials, tapping and drilling.
3.Excellent Details Create Excellent Experience
Quality reflected in every corner
(1)High Power Copper Core Motor
Made of high-purity copper wire,durable, fast speed, low power consumption and fast heat dissipation.
(2)All Steel Handle Fast and Precise Lifting
Unscrew the locking buckle, adjust the lifting handwheel, and lift the drill bit quickly and accurately.
(3)Balanced Adjustment Pulley Durable and Non-slip
The pulley is adjusted through dynamic balance to ensure stable rotation, reduce vibration and make it quieter.
(4)High-quality Lifting Handwheel
Quickly and accurately lift, loosen the locking buckle, adjust the lifting handwheel, and complete the lifting.
(5)High-Precision Metal Drill Chuck
The stainless steel chuck is powerfully clamped to ensure that the drilled holes are not offset and are stable and do not fall off.
4.Factory Direct Sales Source factory, quality assurance
Win tomorrow with trust in quality
Model Z4116/16B
Max. Drilling capacity 16mm
Diameter of column 70mm
Max.spindle travel 100mm
Morse taper of spindle nose MT.2
Spindle speeds 480-800-1400-2440-4100 r/min
Size of worktable 265x265
Size of base worktable 250x300
Distance from spindle axis to column surface 193mm
Distance from spindle nose to worktable 0-255mm
Distance from spindle nose to base surface 250-500mm
Motor 0.55kw
GW/NW 115/100 kg
Ship measurement 80x42.4x96.2cm
