OEM CE Approved with Planer Industrial Professional Sanding Wood Wide Belt Sander Machine

Product Description

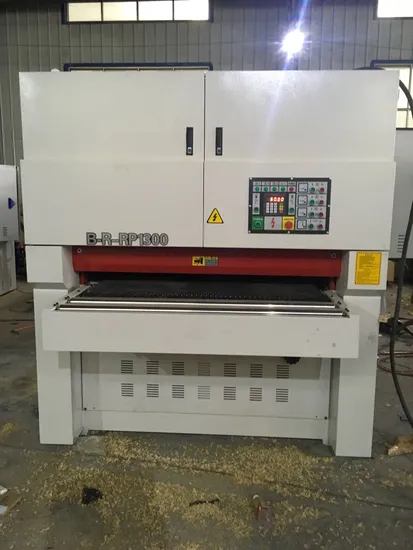

ZDB-R-RP1300 WIDE BELT SANDER WITH PLANER
Control panel: The digital readout is used to set the conveyor table height, and 2 sanding rollers switch, and up and down button for manual adjusting, conveyor table switch.
Planer unit: Flat the unevenness of the wooden board.
Adopting an integrated structure of roller body and pulley, it operates smoothly and has high accuracy

Specification:

Model	ZDB-R-RP630	ZDB-R-RP1000	ZDB-R-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	10-100mm(option 100-150mm)	10-100mm(option 100-150mm)	10-100mm(option 100-150mm)
Min. Working length	500mm(option400mm)	500mm(option400mm)	550mm(option400mm)
Feeding speed	5-25m/min	5-25m/min	5-25m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Total power	29.5kw	41kw	81kw
Working air pressure	0.6mpa	0.6mpa	0.6mpa
Volume of dust collecting	6500m³/h	15000m³/h	15000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension(L*W*H)	1450*2450*2050mm	1750*2450*2050mm	2150*3000*2050mm
Weight	3000kg	3600kg	4500kg

Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES
CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
