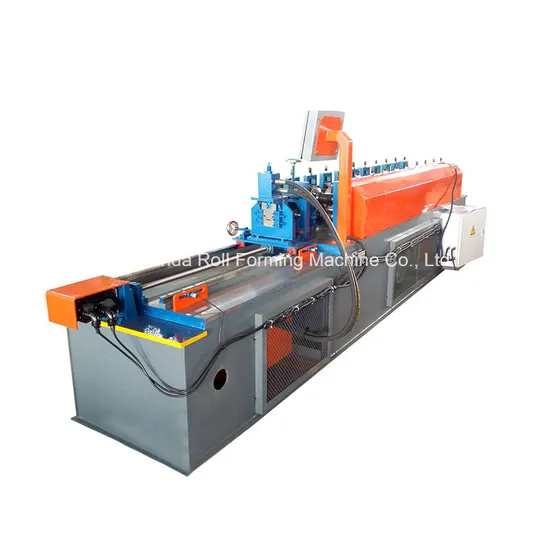

Advanced Omega Profile C U Purlin Channel Roll Forming Machine

Product Description

Automatic Light Steel Keel Roll Forming Machine

Product Parameters
1.Technical data: Final technical data pls contact us ,we will send to you accoring to your drawing of size.

NO.	Item	Specifications
1	Coil Width	According To Drawings
2	Diameter Of Shaft	70mm
3	Forming Speed	8-12Meters/min
4	Middle Plate	16mm
5	Material Of Shaft	45#steel with tempering
6	Forming thickness	0.3-0.6mm or as your need
7	Material Of Rollers	45#steel
8	Cutting type	Hydraulic-cutting
9	Main Power	4+3KW
10	Main Frame	400H Bemas
11	Control System	PLC
12	Color	Bule or as your need
13	Manual Decoiler	5 tons
14	Power	3 Phase, 380V, 50Hz or as your need
15	Dimensions(L*M*H)	About 9800*1800*1800mm
16	Weight	5000KG

Application Scenarios

Our Advantages
Packaging & Shipping
We first wrap the machine with plastic film, and then wrap the electrical box and pump station in wooden boxes. When packaging, we use ropes to secure the machine, making it more stable during transportation.
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container

After Sales Service
FAQ
1.How to play order :
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2.How to visit our company :
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3.When we exported the machines :
We have beening making and exporting the machines since from the year of 1998.
4.Guarantee :
Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.

5.After-sales :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.
6.Contact us:
If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!

---
