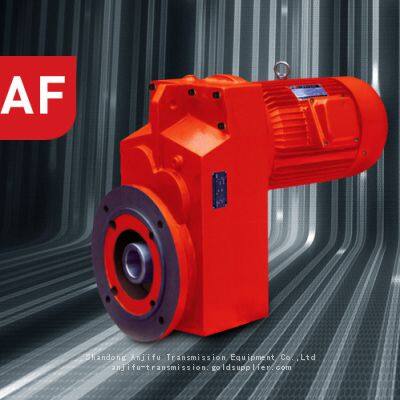

the F series reducer

Product Details

Product Description

Product Description
The characteristics of the F series reducer mainly include highly modular design, detailed transmission ratio division, unrestricted installation position, high strength and efficiency, long service life, low noise, and the ability to withstand large radial loads and certain axial loads. ‌
The F series reducer adopts a highly modular design, which can be easily equipped with various types of motors or other power inputs. The same model can be equipped with multiple power motors, making it easy to achieve combination connection between different models. Its transmission ratio is finely divided and has a wide range, and the combination model can form a large transmission ratio, that is, output extremely low speed. The installation forms of the F series reducer are diverse, and the installation position is not limited. In addition, the reducer uses high-strength cast iron as the housing material, and the gears and gear shafts adopt gas carburizing quenching and precision grinding technology, thus having a high load-bearing capacity per unit volume, high strength, and small volume characteristics. Under the conditions of correct selection and normal use and maintenance, the service life of the main components of the reducer (excluding vulnerable parts) is generally not less than 20000 hours. The main components of the gearbox are precision machined and assembled and tested, resulting in low noise and efficiency of over 95%. The F series reducer can also withstand large radial loads and can withstand axial loads not exceeding 15% of the radial force.
The technical parameters of the F series reducer include a power range from 0.12KW to 200KW and a torque range of 200-18000Nm. These characteristics make the F series reducer widely applicable and reliable in industrial applications, capable of meeting various working conditions and load requirements.

---
