China 3axis 4axis 5axis Aluminum CNC Milling Machine Heavy Duty Metal Vmc Machine Machining Center Vmc960

Product Description

Product Description

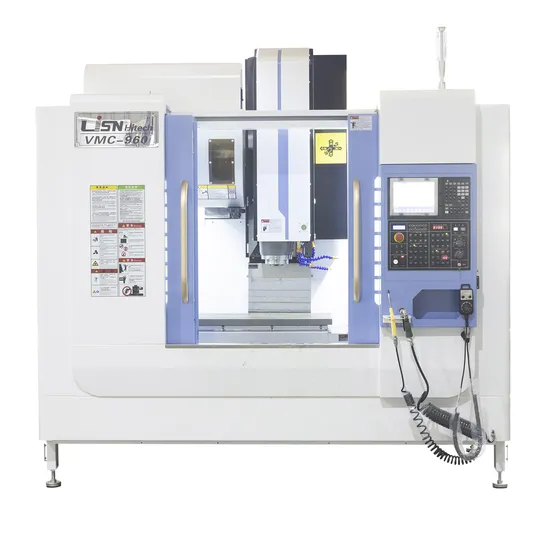

Introducing the VMC 960 a vertical machining marvel from Dongguan Lizhun Machinery Co., Ltd. This state-of-the-art machine embodies unparalleled speed, precision, and rigidity. With a generous worktable size of 1000*500mm, it represents the pinnacle of modern engineering. Crafted with a high-rigid bed for optimal performance, featuring a high-precision roller type guideway and integrated bearing block, this machinesignificantly enhances body rigidity, ensuring superior operational accuracy and maintaining exceptional precision stability throughout its lifetime. The Z axis is powered by a brake servo motor, eliminating the need for a counterbalance block to boost Z axis drive performance. Compact yet robust, this machine boasts numerous optional configurations. It is ideal for processing plates, molds, and intricate small shell components, effortlessly performing milling, boring, drilling, tapping, and thread cutting.
Detailed Photos
Product Parameters

Item	Specifications	MODELS→	VMC640	VMC960
Travel Range	X/Y/Z Axis Travel	mm	650/430/450	900/600/600
	Distance From Spindle Nose To worktable	mm	150-600	320-820
Worktable	Worktable (WidthxLength)	mm	420x700	1200x600
	Max Load Bearing Of Worktable	kg	200	600
	T-Slot(number of SlotxSlot WidthxPitch)	mm	3x18x125	5x18x100
Spindle	Spindle Hole Taper	type	BT40	BT40
	Spindle Speed Range	r/min	12000	12000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	48/48/48	48/48/48
	Max Cutting Feed Speed	mm/min	1-12000	1-12000
Accuracy	X/Y/Z Position Accuracy	mm	0.005	0.005
Machine Dimension	Machine Dimension	mm	2300x2250x2450	2580x2441x2221
	Machine Weight	kg	3400	4500

Standard Configuration for VMC Series 1. Full Cover Shield for comprehensive machine protection
2. RobustSelf-lubrication system ensures smooth operation
3. High-visibility Working lights
4. Attention-grabbing Warning lights
5. Working condition alert lights
6. Self-powered electrical shutoff system for enhanced safety
7. Clean air gun, Water Tank, and Transformer included
8. Advanced Spindle equipped with an air curtain and dust control system
9. Precision-driven 10000 RPM spindle
10. Convenient Worktable cleaning water gun

Optional Configuration for VMC Series 1. 24-disc manipulator tool magazine for enhanced efficiency
2. Efficient Crawler chips remover
3. NC rotary table (4 Axis) for versatile functionality
4. CTS
5. Advanced Tool detection system for precision tooling
6. AJO
7. High-speed 12000 & 15000 RPM Direct connection spindle
8. Environmentally friendly Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name? A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
