Diesel Cement Mixer Jamaica for Exploitation and Construction Since 1991

US$6,800.00
1 Piece
US$6,600.00
2-3 Pieces
US$6,400.00
4+ Pieces

Basic Info.

Model NO.
JZM750
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
21-25 M³/H
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE, Coc
Condition
New
Color
Green
Loading Capacity
1200L
Bags of Cement Per Batch
4 Bags Cement Per Batch
Productivity Power
21-25m3/H
Drum Thickness
10mm
Mixing Motor Power
2*7.5kw
Hoisting Motor Power
7.5kw
Water Pump Power
1.1kw
Speed of Mixing Drum
13rpm
Max. Size of Aggregate
80mm
Packing Size
4900*2000*2500mm
Transport Package
Packed with Bubble Wrap Outside
Specification
4900 (L) * 2000 (W) * 2500(D) mm
Trademark
TOBEMAC
Origin
Zhejiang, China
HS Code
84743100
Production Capacity
30PCS/Month

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:
We are leading factory with almost 30 years in machinery export business, engoy an excellent reputation in circle of concrete mixer. Also, we participate in the Canton Fair every year. We sincerely invite customers who wish to have a long-term cooperation to visit our factory and have business discussion.
To give you a general idea of our products, we are enclosing our catalog for your reference to your email box after your permission. For more information about our company and products, you may also visit our web site: tobemac.en.made-in-china.com
Note: Best price depends on quantity and engine option. Pls contact us for more information.
Model TOBEMAC Brand JZM750 Electric Concrete Mixer with Sliding Hopper
Discharging Capacity 750 L
Loading Capacity 1200 L
Productivity 20-23 m3/h
Bags of Cement per Batch 4 Bags Cement
Drum Thickness 8 mm
Mixing Motor Power 2×7.5KW
Hoisting Motor Power 7.5kw
Drum Rotation Speed 13RPM
Max. Size of Aggregate 80 mm
Water Pump Power 1.1kw
Total Weight 3800 kg
Overall Size (L×W×H) 4900×2000×4600 mm
Packing Size (L×W×H) 4900×2000×2500mm
Container Loading Plan 2 Sets Per 40 HQ

3.Product Application

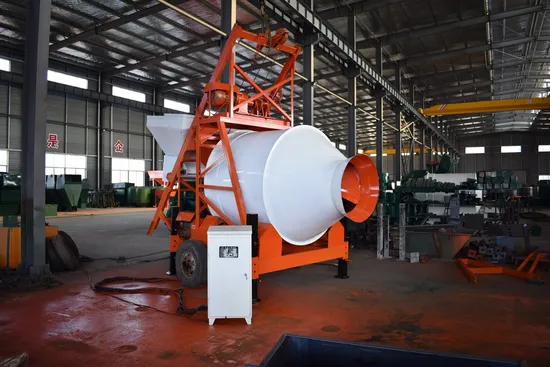

The JZM750 Concrete Mixer with Electric Motor Power and Sliding Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 80mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.75 cubic meters of concrete.
The JZM750 Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Chassis-mounted Big Water Tank
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod
4) Strong Sliding Hopper
5) China TOP Brand Powerful Electric Engine
6) Middle Situated and Bolt Connected Design of Grand Gear Ring.
5.Production Flow
6.Packaging&Delivery
Size 4900 (L) * 2000 (W) * 2500(D) mm
Weight 3800 kg
Packaging Details The normal package is by big PLASTIC BAG .
2 Sets Per 40HQ

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
8.Contact with us!
Twist Wong
Mobile: +86 17816490080
----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA
Website: http://tobmac.en.******.com
