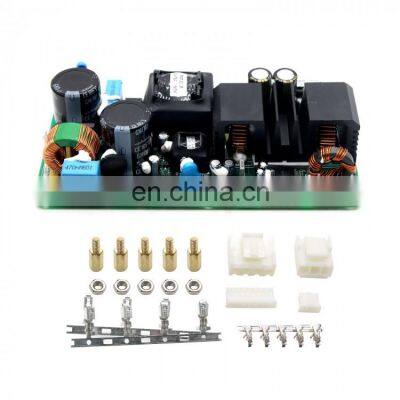

ICE125ASX2 Dual Channel Digital Audio Power Amplifier Module Board

Product Description

Product Description
ICE125ASX2 Dual Channel Digital Audio Power Amplifier Module Board Product Description Specification:- Output power: 120WX2 (1% THD + N, -20Hz-20kHz, 4 ohms SE);450W (1% THD + N, 20Hz-20kHz, 4 ohms BTL) (in order to run BTL mode it requires additional BTL board)- Dynamic :117dBA;THD + N 0.002% (1W, 8 ohms, 1kHz, Se mode)- Bandwidth: 1.5Hz-90kHz- Intermodulation distortion: 0.0009%- Transient intermodulation distortion: 0.007%- Damping coefficient: >500- Maximum output current is up to 30a, allow 100ms to 500ms- Over temperature protection, over current protection- Continuous output power: 65W (ambient temperature: 25deg C)- Maximum power output time: 80s (400W output)- Rated power output: L, R:115W@4Ohm- Frequency response: L, R:20Hz~20KHz (+ 1dB)- Input sensitivity: 40mV- Rated load impedance: 4~8 Ohm.- Overload source electromotive force:>=2V- Harmonic distortion + noise (nominal working conditions and a decrease in the output 26dB, 20Hz~20KHz) L, R< = -40dB- Mute signal-to-noise ratio (A weight): L, R = 90dB- Degree of separation (normal working conditions, L, R): 45dB- Rated voltage: 220V- Frequency: 50Hz- In the normal working conditions of power: less than 300W- Working conditions - rated power: less than 320W- Size: 280X330X90 (mm)- wWeight: 3.4Kg- Outer dimensions: (w) 162*(h) 62 *(d) 261 MMNote: This amp is without volume adjustment. No shell.Package included:- 1 x HIFI AmplifierDetail photo FAQ FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packaging & Shipping Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company Information Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
