5000L Sprite Still Stainless Steel Copper Alcohol Distillation Equipment

Product Description

Spirit distill plant distill the alcohol from the different raw material ,can get the different degree alcohol liquor .

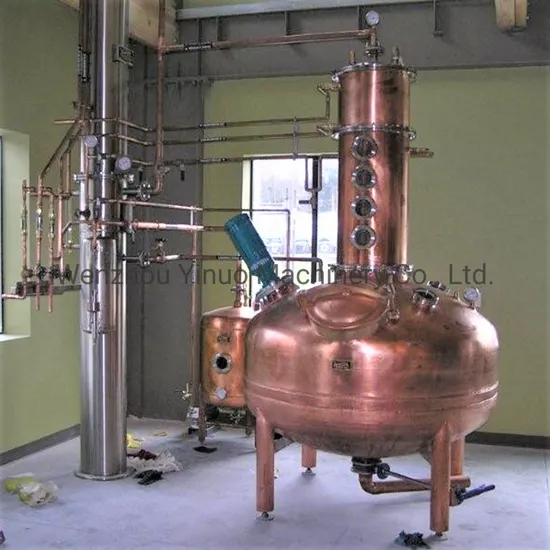

Spirit distill equipments including still pot ,helmet ,column ,dephlegmator ,condenser etc pipeline system .
Spirit distill pot can use steam or electrical heating ,the pot can equipped with the agitator and necessary fittings.
Spirit distill pot capacity can make from 50L to 5000L .
Multi tower continuous distillation uses several different towers to complete the distillation process. Even if a strong liquor reaches 96% alcohol concentration, it is not without flavor, and will contain a very small amount of Fusel, methanol and other congeneric elements. When it comes to vodka, some light rum or gin and other base liquors, it is more appropriate, or legally required, to further reduce the flavor of spirits. The two most commonly used methods are: one is hydroselection, which can remove fusel; the other is demethylation, which is used to remove methanol. The operation of both methods depends on the volatility of Fusel and methanol in ethanol solution. If the alcohol content of a highly distilled spirit is reduced to 20%, the volatility of Fusel becomes stronger. In a hydraulic selection tower, the highly distilled spirits enter from the middle of the tower, mix with the hot water from the top to dilute, and meet with the steam heated from the bottom to the top. Fusels become more volatile, rising to the top of the tower, while diluted spirits are collected at the bottom. Methanol is more volatile when the alcohol concentration reaches 96%. In a demethylation tower, spirits are slowly heated, methanol can be separated through many distillation plates, and collected at the top, so that more pure and higher concentration ethanol remains at the bottom.Demethylation is generally necessary for the production of vodka, because the legal content of methanol in vodka in the EU is extremely low. Therefore, a five column distiller can include a separator, a distiller, a water selection tower, a second distiller to make the alcohol solution of Fusel return to 96% concentration through the past, and a demethylation tower. This system is very complex, but it can also produce a large number of different products.
Function for the component of the equipment:

Item	Material	Function	Type
still pot	SS304 ,SS316Land red copper	Material/mash distilling	Tank/pot
Helmet	SS304 ,SS316L and Full red copper	Improve high quality	Ellipse/round type
Gin basket	glass / red copper	Flavour spirits, making Gin	Basket, glass
Distilling column 16 plate	SS304 ,SS316L and Full red copper	Distilling alcohol	Column
Dephlegmator	SS304 and SS316L	Partial condenser	Column
Condenser	SS304	Condensing to alcohol	Column

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
