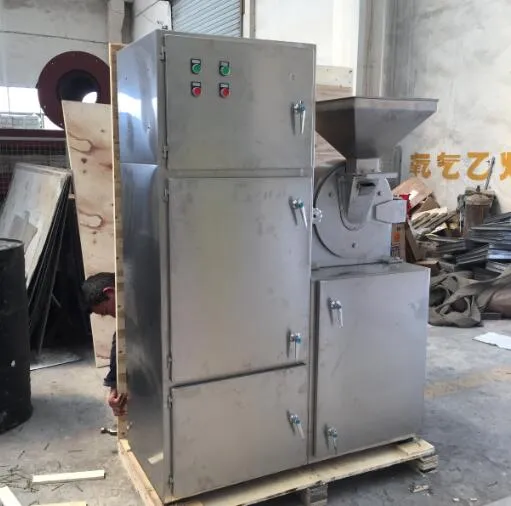

B Series Universal Pulverizer with Dust Collector

US$2,000.00-8,000.00 1 set (MOQ)

Basic Info.

Model NO.
B series
Certificate
CE
Material
SS304, SS316L
Spare Parts
Available
Advantage
Easy Operation Better Price
Type
Hammer Crusher
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Planar Motion Culling
Cutter Material
High-Speed Steel
Tongs′ Features
Universal Tongs
After-Sales Service
Site Service or Online Technical Support
Warranty
All Its Life
Object
Herbs
Transport Package
Export Plywood Case
Specification
550*600*1250mm
Origin
Jiangsu
Production Capacity
50set/Month

Packaging & Delivery

Package Size
110.00cm * 60.00cm * 165.00cm
Package Gross Weight
250.000kg

Product Description

B Series Universal Pulverizer
Main application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B, model 40B and 60B crushing chamber is equipped with water cooling jacket, with simple structure, high output and easy cleaning, this machine is the mot ideal crushing equipment at present
Technical Data
Spec unit 20B/20B Set 30B/30B Set 40B/40B Set 60B/60B Set
productive capacity kg/h 60-150 100-300 160-800 500-1500
speed of main shaft r/min 4500 3800 3400 2800
feeding granule size mm 6 10 12 15
finess of pulverization mesh 60-150 60-120 60-120 60-120
grinding motor power kw 4 5.5 11 15
fan power kw 1.5 1.5 1.5 2.2
weight kg 250 320 550 680
overall dimension(L×W×H) mm 550×600×1250 600×700×1450 800×900×1550 1000×900×1680
overall dimension(set)(L×W×H) mm 1100×600×1650 1200×650×1650 1350×700×1700 1550×1000×1750
