HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price

Product Description

Product Description
HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price
Product Description
Features for HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price:
Adopt ARM9 Embedded Control Systems, FPGA signal processing system and
elaborate selected ultrasonic hardware system.
10.4 inch high resolution LCD screen,
Menu operation Language: Chinese/English.
Double probe sockets:
A mode probe: 10MHz, imported probe with fixation light.
B mode probe: 10MHz, imported transducer.
Display mode: B, B/B, 4B, B/A, A
Gains range: 0--120dB.
Dynamic range: 30-100dB, visual and adjustable.
Gray: 256.
Intelligent TGC adjustment: 8 segments.
Build-in D disk: 4GB, save mass data, images, reports, etc.
Report function: print screen, IOL report, case report with picture, etc.
Specification
Power supply : 100-240V~ 1.2-0.6A Frequency:50-60Hz
Adapter output: DC12.8V 3.0A
Net weight.: 4.5kg.
Dimension: 256x150x326mm(length x width x height).
Standard configuration:
1. Main unit: 1 pc
2. 10MHz mechanical sector B probe: 1 pc.
3. 10MHz A probe : 1 pc.
4. Network cable: 1pc
Optional configuration:
1. Large lithium battery
2. Battery charger
3. Footswitch
4. Trollry
5. Ethernet switch
A scan:
Resolution: 0.01mm
Gain adjustable: 0-120dB
Measurement range: 12-43mm(1640m/s)
Accuracy: ±0.02mm
Measuring parameter: ACD, LENS, body Length, axial length.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo
Phakic eyes
Measuring Mode: Contact and Immersion, automatic and manual.
Measurement methods: A single-point measurement(under A mode); five-point
measurement(under A mode).
Calculation: std. deviation, average, automatical measuring 8 groups and average,
accompany waveform, results correctable.
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS
B scan:
Scan mode: High accuracy stepping motor drive sector scan.
Scan Angle: 53°.
Display Depth: 0~56mm
Gray: 256.
Frame frequency: 10frames/s.
depth seletion: 8.
Frame correlation: 4.
Edge enhancement:4.
Compression Curve: 4
Post-processing: 8
100 frames permanent image storage.
Cine loop: 256 frames,can measure the playback image.
Disk management.
General Measurement: multi-electronic-rule to measure distance, circumference,
area(trace method, ellipse method),volume (ellipse method), angle , histogram,
profile , stenosis and curvature etc.

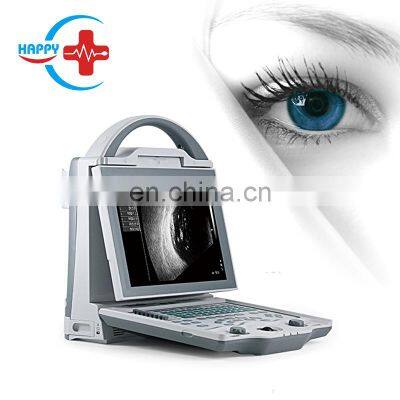

Pictures for HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price:
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price product, What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
And also the delivery time depands on quantity. For HC-Q034A Ultrasound Instrument Scanning Machine Ultrasonic A /B Scan Ophthalmic Eye Ultrasound Scanner With Low Price , the delivery time is 10 working days .
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.

---
