Description

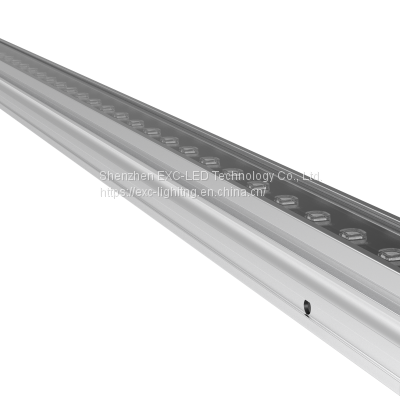

EXC-U28NCB0 full-color series consists of full-color SMD strip lights equipped with an ultra-narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting. They are only 28mm wide. Each strip includes 8 pixels, and each pixel can realize 65536 grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.
Features
lOnly 28mm wide
lThe newest generation technology: DMX512 parallel bus design
lFull-sealed filling waterproof design by German imported glue
lAluminum alloy lamp body with low thermal resistance path heat dissipation design
lOutdoor lightning protection and electrostatic discharge (ESD) protection design
Basic Specifications
Color Range
| RGB/RGBW/W
|
Working Voltage
| DC 24V
|
Max. Power Consumption
| 9W/12W/15W/18W
|
Light Source
| 36/48/60 pcs LEDs
|
LED chip Brand
| Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
|
CRI
| 80
|
Control
| DMX512, ON/OFF
|
Segment
| 1/4/5/6/8/10
|
Source Life
| 50,000 h
|
Housing
| High strength aluminum alloy
|
Cover
| PC(Transparent, Opal)
|
Weight
| 0.77Kg
|
Working Temperature
| -40°C to 60°C
|
Storage Temperature
| -40°C to 70°C
|
Protection Rating
| IP66
|
Efficiency flux
| 40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW)
|
Beam Angle
| ≥95°
|
Host Controller
| EXC-5200
|
Slave Controller
| EXC-2905T1
|
Signal Cable
| EXC-LED outdoor special cable
|
Physical Dimension
Unit：mm
Installation Diagram
>>
