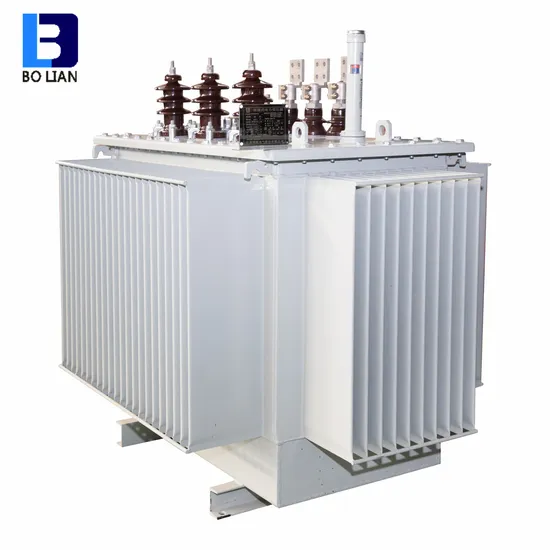

S13 S11 Dry Type Sealed Three Phase Oil Immersed Transformer Distribution Low Loss Power Isolation 10kv 110kVA AC Outdoor

Product Description

Product characteristics:
1.The core is made of high quality cold rolled grain oriented silicon steel sheet, 45°three-stage fully oblique seams, no punching, and the core column is brushed with polyurethane varnish for curing.
2.The coil is made of oxygen-free copper conductor with reasonable structure, which improves the resistance to sudden short-circuit.
3.Increase the effective support of winding end face, so that the short-circuit resistance of the winding is further improved.
4.Oil storage cabinet is cancelled, and the wave fin of corrugated oil tank replaces the oil pipe as the cooling element, the wave super can expand and contract with the volume expansion and contraction of the transformer oil, the transformer oil is isolated from the atmosphere, which prevents and reduces the deterioration of the oil quality and the insulation dampness, and strengthens the operation reliability, and the normal operation is free of maintenance.Product Parameters

Number of Phase	Three Phase
Winding Type	Two Winding
Rated Capacity	50/2500kVA
High Voltage	10/11kV
Low Voltage	0.4kV
Tapping Range	±2x2.5%
Impedance Voltage	4%
Load Loss	2.73/2.6kW
No-load Loss	0.34kW
No-load Current	1.0%
Frequency	50/60Hz
Connection Group	Yyn0/Dyn11
Cooling Method	ONAN
Coil Material	Aluminum/Copper
Size	Based on customization
Weight	kg

---
