Honeycomb Plate for Cutting FPCB

Product Description

Model	Core diameter(mm)	Density (KGS/M3	Standard color	Common size For example(mm)	Max size (mm)	Thickness (mm)	Thickness tolerance (mm)
PC3.0	3	110	Dark grey	1260*640*20	1260*640	2-80	±0.3
PC3.5	3.5	90	Grey	1260*640*10	1260*640	2-80	±0.3
PC3.5	3.5	90	Transparent	1260*640*15	1260*640	2-80	±0.3
PC6.0	6	70	Grey	1260*630*25	1260*630	5-80	±0.3

Other core diameter (within 3mm to 6mm) ,other color can be made after meet to MOQ .
According to confirmed model ,size and quantity negotiation
Working temperature: -40 -- 115 Celsius degree
PC HONEYCOMB,model PC3.5-90 Grey
PC HONEYCOMB,model PC3.5-90 Grey application in Laser cutting machine
PC HONEYCOMB,model PC3.5-90 Grey application in cutting FPCB
Product Description

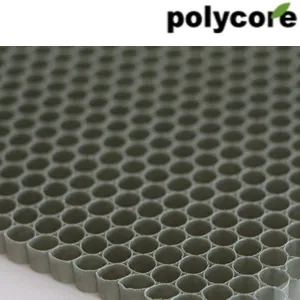

Polycore PC honeycomb shape is round, The cells of the PC honeycomb are essentially circular rather than hexagonal and are fused together rather than glued.
So it's more stable in shape and life longer than hexagonal.
Polycore PC honeycomb is specially three dimensional structure, so it's more steady and equilibrium than other two dimensional honeycomb structure.
PC honeycomb core stand by tightly to provide excellent compressive strength, besides PC honeycomb working temperature from -40--+115 Celsius and its easily installation, clean times available and holds stable life.
Polycore PC honeycomb with uniform core ,stand tightly by each other, the thickness is strictly definitely, surface is smoothness and flatness, so it's best honeycomb plate for Laser cutting machine to cut FPCB .
Polycore PC honeycomb act as honeycomb plate for laser engraving and cutting machine meet to
low sputtering rate,
smaller gas absorption rate,
top flatness
and strong breathability
all main factors which influence to laser cutting machine life and the be cut products' accuracy.
Polycore PC honeycomb adopted first brand of PC granule raw material ,strict management in production each process, so Polycore PC honeycomb core uniform, PC honeycomb sheet thickness tolerance within +/-0.3mm.
Now when PC honeycomb as honeycomb plate in Laser cutting machine, the most popular model is PC3.5, grey and transparent color for selection.
Stock size:L*W :1260*640*10mm.
Other size can be made if there is scale request.


Product Application

Application:
Polycore PC honeycomb as plate applied into UV or Picosecond Laser Cutting Machine to cut FPCB/PCB
Company Profile

Qingdao Polycore Technology Co.,ltd is a leading manufacturer of materials used for building, cooling, decoration, transportation, Electron, air purify.
The main products range include the following:
PP honeycomb for air purifier, transportation as wall ,ceiling, floor for van, boat, yatch, construction, etc, application
PC honeycomb core for commercial refrigeration, laser cutting, decoration, applications.
FRP PP honeycomb composite board for sports, transportation, building, etc.
PC honeycomb composite board for partition, decoration, etc.
Night cover for commercial refrigeration.
Hard tube for electrical, decoration, lighting, plant ,etc, application.
Qingdao Polycore commits to provide consistent quality products with services to market. We would like to be your reliable long-term business partners.
FAQ

Q. Why use a PC honeycomb in Laser Cutting Machine? A. PC represents Polycarbonate, PC honeycomb structural is known for its structural stabilization, high strength, light weight, Core uniform , core inside smooth for air flow. Polycore PC honeycomb plate is smoothness and flatness, So PC honeycomb applied into laser cutting machine to cut FPCB, guide air flow to take out heating in cutting, guarantee the rate of output with quality.
Q.What do you think about the performance of PC honeycomb Core?
A. It works perfectly. PC honeycomb plate is economical in such application.
Q. Is PC honeycomb Core fire resistant?
A. PC honeycomb core is self-extinguishing after leave fire. It's fire-retardant grade is B2.
Q. How about PC honeycomb working temperature?
A. PC honeycomb core can keep its shape under working temperature -40--- 115 Celsius degree
Q. Can we ask a free sample?
A. PC honeycomb sample is freely provided when there is suitable thickness of sheet, sample size within 200*200mm. You just need to pay express freight from our address to you.

---
