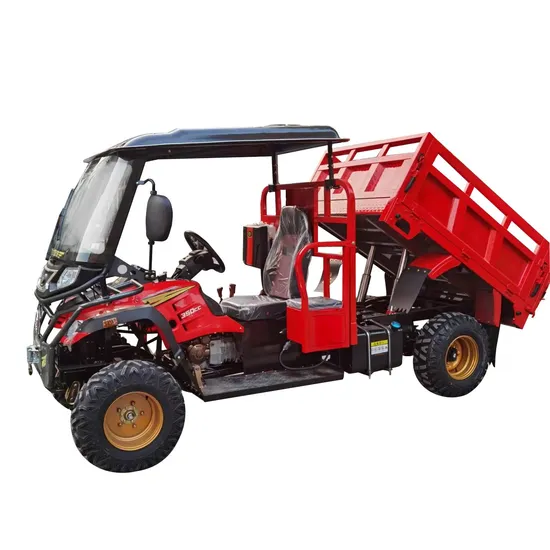

350cc Gasoline Engine Farm All-Terrain Vehicle ATV

Product Description

Product Description 350CC single-cylinder four-stroke water-cooled gasoline engine, steering wheel driving (with EPS electronic power assist), front and rear 25/10-12 off-road vacuum tires, part-time 4-wheel drive, cargo box: L1600 * W1200 (mm), with electric traction winch, with double Cylinder hydraulic self-unloading, maximum speed: 55-70km/h
Detailed Photos

Product Parameters

parameter status	Specification Description
Dimension (L×W×H) mm	3230×1300×1560
Cargo size(L*W*H)mm :	1600*1200*560
Hydraulic dump system	Double-cylinder hydraulic dump truck (MAX750, 5T double-cylinder hydraulic)
Net Weight (Kg)	498
Max Load (Kg)	1500KG
Max Speed	60km/h
Ground clearance	238mm
Max Gradient	>15°
Minimum Turning Diameter(mm)	6000
Front Wheel Specifications	AT 25*10-12
Rear wheel specification	AT 25*10-12
Front track	936(mm)
Rear track	936(mm)
Front and rear wheelbase	2090mm
Engine	Single-cylinder, water-cooled, four-stroke
Displacement	350CC
Start Mode	Electric / kick
30km/h Braking Distance / Initial Speed 30km/h	< 7.5
Rated Power / Rotary Speed	14kw / 6000r/m
Max Torque / Rotary Speed	25.5Nm/4500r/m
(L / 100km) Economic oil consumption	≤3.5
Compression Ratio	9.2:1
Fuel tank capacity:	22L
Battery	12V/28A Maintenance-free lead-acid battery
Driving type:	Steering wheel (with electronic power assist)
Transmission Way	shaft drive 4WD
Suspension	Front MacPherson/rear steel plate
Drive mode	Part-time four-wheel drive
Braking method	Front disc brake/rear oil drum brake
Standard configuration:	With electric winch, new simple front hood with dual headlights, electric wipers,
Container Loading Quantity(40HQ)	32 units in CKD in 40HQ

Packaging & Shipping
Company Profile Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.
The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,
Its brand"NIEGUI"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.
The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.
The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation!

---
