Disk Vacuum Filter for Metallurgy, Chemical Industry

Product Description

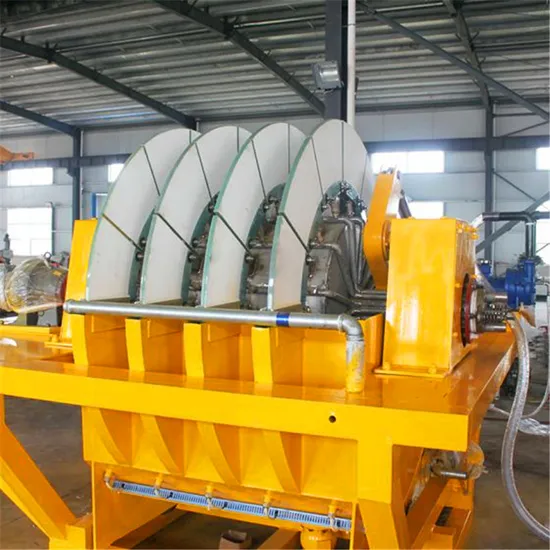

Disk Vacuum Filter for Metallurgy, Chemical Industry
Introduction:
CITICHL designed and manufacturers disk filter with advanced performance indexes and structure by introducing advanced technology from EIMCO. The series product has filter area of 40m2~120m2, and used for dehydration of below 0.5mm flotation clean coal, waste coal and other fine grain materials, and solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment, and has advantages of reliable operation, stable performance, long service life of plastic sector plate and stainless steel wire filter cloth.

This machine is mainly used for floating 0-0.5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, it also can be used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment. The acid-proof filter is used for separation of solid-liquid corrosiveness materials, with using stainless steel materials.

Working principle:
When working, the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.
Main technical parameter:

Model	PG9-2	PG18-4	PG27-6	PG39-4	PG58-6	PG78-8	PG97-10	PG116-12
Filtering area (m2)	9	18	27	39	59	78	97	116
Qty of filter disc	2	4	6	4	6	8	10	12
Diameter of disc (mm)	1800	1800	1800	2700	2700	2700	2700	2700
Rotating speed of filter disc (r/min)	0.135-0.607				0.15-0.67		0.148-0.66
	0.254-1.14						0.258-1.258
							0.44-1.98
Main drive motor power (kw)	1.1	1.1	1.1	1.5	2.2	2.2	4	4
Power of agitating motor (kw)	1.1	1.1	1.1	1.5	2.2	2.2	4	4
Qty of vacuum pump	1	1	1	1	2	2	1	1
Pump model	SZ-2	SZ-3	ZYK-27	SZ-4	SZ-4	SD4	2YK-110	2YK-110
Weight (t)	2.5	3.5	4.6	6	8	9	10	12

About us
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
CITICHL is national major industry and heavy machinery manufacturing base in the middle of china, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.
Our services
Pre-sales service:
Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support. Every customer has the chance to visit the working machine in the site before placing the order, we help to arrange cars, hotels, and translators for every visiting customer.
After-sales service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the calcium carbonate powder site to help install the customers' plants. Necessary training about machine daily maintenance to local workers is provided also.

---
