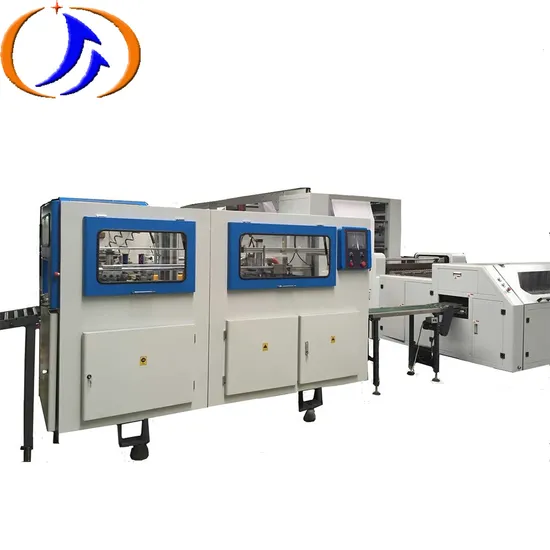

Manual Die Cutting Paper Creasing and Perforating Machine

Product Description

1.Product introduction and pictures
2.Product technical parameters and table

Technical parameter of Professional high speed a4 paper cutting & packaging machine
Model	HQJ-1100
Max.Diameter of Unwinding	φ1400mm
Max. Cutting Width	1100mm
Cutting Length	20-400mm
Machinery Speed	10-200cut per minute
Working Speed	150 -180cut per minute
Cutting Precision	±0.2mm
Power	23kw
Weight	8500kg
Machine Size(L*W*H)	14000×2000×2000mm

3.Other products
4.Corporate image display
Qingdao International Trade CO., LTD, which is located in Free Trade Area, Huangdao, Shandong, specializes in developing and producing various machinery. We have professional team and mature production experience for more than 20 years. Taking high technology as guide, the improvement of management level and employee quality as center, the expansion of the production scale and the upgrade of the products as aim, our company will strictly focus on the product quality and put every series of products on the international market with outstanding performance and preeminent quality. Our company persist in the slogan "Customer's satisfaction is our standing pursuit".
5.The product production
6.Product Packing & Delivery
7.Product quality certification
8.The company cooperation
9.Main Features 1).Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control , color code track etc function.
2).Feeding roll use auto loading system(150#cylinder), air shaft use 3#(76mm paper tube core)
3).Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.
4).Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.
5).Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat

---
