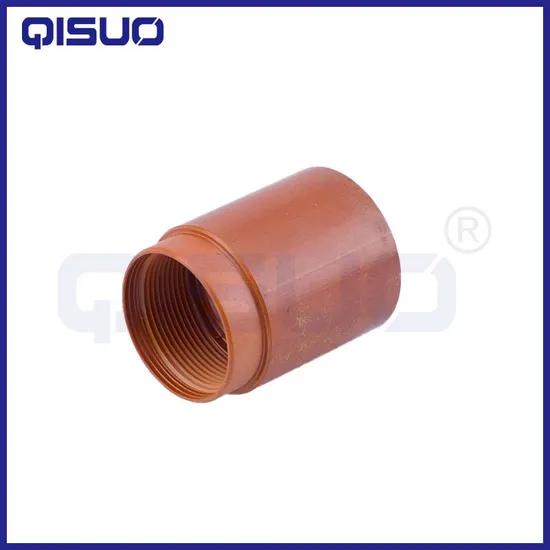

A141 Plasma Cutting Insulator for Trafimet Plasma Cutting Torch

Product Description

We are Manufacturing plasma consumables and export more than twenty countries. our price and quality have competitivity.
Please send us the parts you need and we will send price back to you .
PMX45,PMX1250,PMX1650,PMX45/65/85/105/PMX125/PRO200,HSD130 ,Thermal dynamic
Trafimet : S45, S75, S105, S125, A81, A101, A141, A151, CB50 , CB70, CB150,LT151, LT81, CP160
ESAB : Spare Parts ,Gas Cutting Nozzle ,PT80 ,PT36 ,PT31
AJAN,Lincoln ,LC125,LC105, HC-1003 , YY160
YGX300, YGX100,YGX200
YK300,YK330,YK200H,YK100H,YK130
Kjellberg,P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55,trafimet serise cutting torch and part Product Description

Technical		Data
Current		140 Amp
Duty Cycle		60%
Gas		AIR
Gas Pressure		4.5-5.0 Bar
Gas Flow		220LPM
Ignition		HF
Post Flow		140 sec.recommended
Standard Length		6M

HAND TORCH

Ref Code(6m)	Ref Code(12m)	Description
QS PA1502	QS PA1503	Plasma cutting torch A141 1/4G
QS PA1506	QS PA1507	Plasma cutting torch A141 3/8G
QS PA1500	QS PA1501	Plasma cutting torch A141 M14x1
QS PA1509	QS PA1510	Plasma cutting torch A141 M16x1.5
QS PA1504	QS PA1505	Plasma cutting torch A141 central adaptor

MACHINE TORCH

Ref Code(6m)	Ref Code(12m)	Description
QS PA0105	QS PA0109	Plasma cutting auto torch A141 3/8G
QS PA0108	QS PA0106	Plasma cutting auto torch A141 1/4G
QS PA0103	QS PA0104	Plasma cutting auto torch A141 M14x1
QS PA0142	QS PA0143	Plasma cutting auto torch A141 central adaptor
QS PA0145	QS PA0146	Plasma cutting auto torch A141 M16x1.5

Position	Ref Code	Description
1	QS CV0013	Gouging spacer/A141-150
2	QS CV0014	Four pointed spacer/A100-150
3	QS CV0012	Double pointed spacer/A100-150
4	QS CV0011	Spacer spring/A100-150
5	QS PC0102	Outsid nozzie A141
6	QS CV0039	Four point crown shield with insulator /A101-141
7	QS CV0023	Spacer for contact cutting/A101-141
8	QS PC0131	Outsid nozzie A141-151
9		Tip
9.1	QS PD0101-11	Tip φ1.1mm A101-141
9.2	QS PD0101-14	Tip φ1.4mm A101-141
9.3	QS PD0101-17	Tip φ1.7mm A101-141
9.4	QS PD0101-19	Tip φ 1.9mm A101-141
10	QS PE0101	Diffuser A101-141
11	QS PR0101	Extended Plasma A101-141
12		Air tube/A141-151
13	QS CV0044	Locking nut
14	QS CV0008	Shield cap attachment/A100-151
15	QS CV0009	Long contact cutting attachment/A100-151
16		Tip
16.1	QS PD0117-14	Extended tip φ 1.4mm/A101-151
16.2	QS PD0117-17	Extended tip φ1.7mm/A101-151
16.3	QS PD0117-19	Extended tip φ1.9mm/A101-151
16.4	QS PD0111	Extended tip 50A/A101-151
17	QS PE0103	Diffuser A151
18	QS PR0116	Extended electrode Plasma A101
19		Extended air tube/A150
20	QS PF0155	Plasma torch head A141
20a	QS EA0131	Oring φ18.77x1.78mm in silicon
20b	QS PE4002	Front insulator/A141-151
21	QS TP0085	Plasma handle manual/A Series/Red
22	QS BW0277	Protection part/Plasma/Yellow
23	QS BX0020	Trigger
24	QS BW0349	Plasma joint/big/new type
24.1		Cable assembly
24.2	QS PH0146	Cable assembly/A141-151/6m 1/4G
24.3	QS PH0148	Cable assembly/A141-151/6m 3/8G
24.4	QS PH0142	Cable assembly/A141-151/6m M14x1
24.5	QS PH0150	Cable assembly/A141-151/6m M16x1.5
25	QS PH0144	Cable assembly/A141-151/6m central adaptor
26	QS MT1001	Spanner for Plasma
26a	QS PF0102	Plasma torch head A141
27	QS TP0061	Fiber glass position tube/A141-M
28		Cable assembly A141-M
28.1	QS PH0122	Cable assembly A141-151/6m 1/8G
28.2	QS FA5132	Connecting adaptor 1/8G-1/4G
28.3	QS FA5131	Connecting adaptor 1/8G-3/8G
28.4	QS FA5133	Connecting adaptor 1/8G-M14x1
28.5	QS FA5134	Connecting adaptor 1/8G-M16x1.5
29	QS FY0023	Central adaptor torch side Plasma 5 pins
30		Circle cutting attachment/A101-151

Company Profile
About Us
Changzhou Qi Suo Welding Equipment Co., Ltd. is a modern enterpriseintegratingdevelopment, production and sales. Founded in 2012. The company hasstrong technicaforce, strong production capacity, complete testing equipment,specializing in the productionof plasma cutting gun, MlG & TlG welding gun, andvarious welding accessories.
Advancedtechnology and excellent performance. With perfect quality system and excellent after-sales service, the company constantlydevelops the domestic market.
We have exported more than 100countries like USA.Mexico.
Canada,Spain,Russia,Singapore, Thailand, India etc.
Whether selecting RTS products from our catalog or seeking engineering assistanceforyour application, you can discuss your purchasing needs with our customer ServiceCenterand we will provide you with the most professional service. Why Choose Us ?
ADVANCED CNC EQUIPMENT Our company has a large number of advanced CNC equipment. What is shown in the picture is the fully automatic truss robot, which can realize the automatic feeding and taking of materials with high efficiency and stable quality. LARGE INVENTORY OF COPPER MATERIALS Our company has a large amount of copper material inventory, to prepare for your order, to ensure that you can ship quickly. MULTIPLE CNC MACHINES GUARANTEE ORDER QUANTITY Our company also has many CNC simultaneous operations that can produce large volume orders. Skilled operators and technical personnel as a guarantee. HAVE A LARGE STOCK OF SOME CONVENTIONAL PARTS This is one of the warehouses of our company. We have a large stock of some conventional parts, such as P80, A141 and so on. You are welcome to visit. Packing & Shipping
FAQ
Q:CAN I HAVE A SAMPLE FOR TESTING?
A:Yes, we can support sample, The sample will be charged reasonably according tothenegotiation between us.
Q:CAN IADD MY LOGO ON THE BOXES/CARTONS?
A:Yes, OEM and ODM are available from us.
Q:CAN ISEND SAMPLES AND HAVE THEM CUSTOMIZED?
A:Of course, we can make the parts you need according to the sample 1:1 reduction.
Q:DO YOU SELL ANY ORIGINAL PARTS?
A:Yes, welcome to inquire, we will sell some original parts, but also sell non-originalparts.The price of non-original packaging is relatively low.
Q:CAN I HAVE A VISIT TO YOUR FACTORY BEFORE THE ORDER?
A:Sure, welcome your visit to our factory.

---
