Environment-Friendly Automatic Aquatic Weeds River Harvester

US$25,500.00-29,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Aquatic weeds river harvester
Application
River/Lake/Pond
Power Source
Diesel
Harvest method
Cutting
Drive Type
Propeller
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Blue
Condition
New
Application Field
Agriculture
Warranty
One Year Warranty
Total Length
16m
Hull Length
9m
Underwater Mowing Depth
2m
Drive Mode
Bilateral Wheel or Propeller
Hull Width
1m
No Load Draft
0.3-0.4m
Loading Capacity
14-15 Sqm
Work Speed
3-5km/H
Amount of Work
1000-6000sqm/H
Hull Height
1m
Transport Package
Standard Package
Trademark
Jinying
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month

Product Description


Product Description

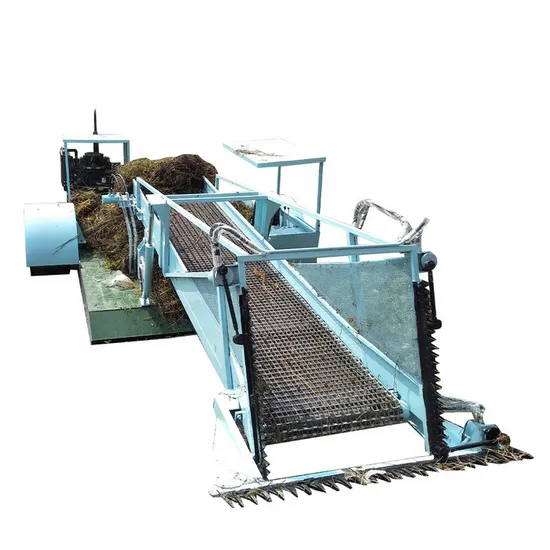

1. The ship can efficiently harvest water grass, only one person in the cab operation, can complete the gathering, collection, water filtration, transportation, storage, unloading, navigation and other work, has a powerful water grass harvesting function and water surface cleaning function,all kinds of floating garbagecan be successfully salvaged.
2. The ship has fast speed, wide harvesting range, few harvesting dead corners, safe operation, wide seaworthiness area, easy operation and high degree of automation.
3. The front, middle and rear compartments of the ship are composed of high-strength stainless steel conveyor belts, which are equipped with stainless steel hooks.The average bearing capacity of each stainless steel hook is up to 1ton,which can be firmly and round hooked in water grass to prevent it from slipping into the water again. The conveyor belt bearing capacity,durable, easy to replace, water grass hook hanging ability.
4. The ship is equipped with a pair of transverse knives at the bottom of the harvest, a pair of vertical knives (wheels) on the left and right sides,and a set of mechanical collecting wheels, which can not only harvest weeds but also clean up floating objects on the water.
5. The boat is driven by double paddle wheels, so it will not be entangled by weeds or fishing nets in the process of driving. You can turn around in place to minimize the turning radius.

Product Parameters
River cleaning machine,which can be used in rivers,lakes,reservoirs,parks and other environments to clean up water plants,duckweed,lotus leaves,water hyacinth,reeds,etc.
Model
QY-GC-60
QY-GC-85
QY-GC-110
Total length 10.8m
13.5m
16m
Hull length 5m
7.5m 9m
Hull width 3m 3m 3.4m
Hull height 1m 1m 1m
No load draft 0.3-0.4m
0.3-0.4m
0.3-0.4m
Load draught 0.4-0.6m
0.4-0.6m
0.4-0.6m
Collecting depth ≤1.8m
≤1.8m
≤2m
Collecting width ≤4m
≤2m
≤2.2m
Loading capacity 5cbm
8-10cbm
14-15cbm
Power of engine 45kw 60kw 90kw
Sailing speed 5-7km/h 5-7km/h 5-20km/h
Working speed 3-5km/h 3-5km/h 3-5km/h
Endurance
12h 12h 12h
Drive mode
Bilateral paddle wheel or propeller Bilateral paddle Bilateral paddle
Discharge height
≤3m ≤3m ≤4m
Amount of work
1000-3000sqm/h 1000-4000sqm/h 1000-6000sqm/h
