CNC Gantry Movable Flat Steel Plate High Speed Drilling Machine 2000mm*1600mm*100mm

Product Description

CNC Gantry Movable Flat Steel Plate High Speed Drilling Machine 2000mm*1600mm*100mm

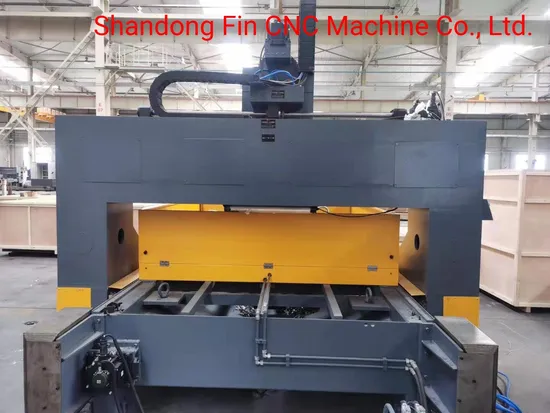

PHD2016 CNC High Speed Drilling Machine for Steel Plates
Applicable Industry:
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
Main Technical Specifications:

Specification name	Items			Specification valve
Workpiece dimension	Material overlapping thickness			Max. 100mm
	Width ×length			2000mm×1600mm
Spindle	Spindle boring			BT50
	drill diameter			Ordinary twist drill maximum Φ50mm Hard alloy drill maximum Φ40mm
	Carbide drilling depth			≤2d
	rotate speed			0-2000r/min
	travel length			350mm
	Spindle frequency conversion motor power			15KW
Workpiece clamp	clamp thickness			15-100mm
	clamp cylinder number			12
	Clamp force			7.5kN
	Clamp start			Foot switch
hydraulic	Clamp pressure			6MPa(60kgf/cm2)
	capacity of tank			About 100L
Air pressure	Gas source demand			0.8MPa
	Hydraulic pump			2.2kW
	X axle servo system			2.0kW
	Y axle servo system			1.5kW
	Z axle servo system			2.0 KW
	Chip conveyor			0.75kW
Control axle number		X,Y,Z(X,Y,Z axle simultaneous control)
Travel range		X axle	2000mm
		Y axle	1600mm
		Z axle	Max. 350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic hydraulic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Mitsubishi	Japan
5	Servo driver	Mitsubishi	Japan
6	PLC	Mitsubishi	Japan
7	principal axis	Kenturn	Taiwan, China
8	Computer	Lenovo	China

Product Feature:
The ideal drilling machine is mainly composed of bed(worktable), gantry, drilling head, longitudian slide platform, quick-change chuck, hydraulic system, control system, cooling system and chip-conveyor etc.
The cnc machine can use internal cooling high speed steel drilling head with coating. Using the internal cooling high speed steel drilling head with coating can significantly improve the processing efficiency and quality.
The machine including three CNC axes, each of all is guided by high precision linear rolling guide, driven by AC servo motor and ball-screw.
It adopt precision spindle with high rotation accuracy and good rigidity. Equipped with BT50 taper hole, it is convenient to change the tool. It can be used for clamping twist drills and hard alloy drills, which has a wide range of applications. The main shaft is driven by a main shaft frequency conversion motor, which has a wide range of applications. The speed can be continuously variable in a wide range to meet the needs of multiple speeds.
The machine has 3 CNC axes: gantry positioning axis (X axis); horizontal positioning axis of drilling power head (Y axis); feed axis of drilling power head (Z axis). Each CNC axis is guided by a precision linear rolling guide, driven by AC servo motor + ball screw.
Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service:
FAQ: 1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
