Alloy Steel G80 Lifting Chain Galvanized or Black or Electrophoresis in Stock Based on En818-2 Standard Used for Lifting/ Chain Sling

Product Description

Product Description

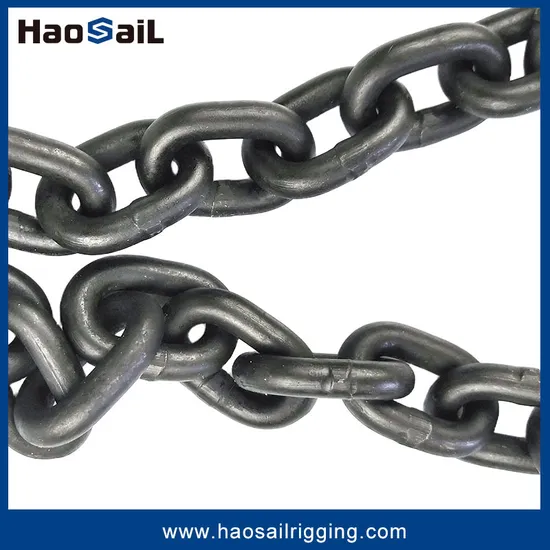

G80 Steel Lifting Chain based on EN818-2 standard
The G80 steel lifting chain of EN818-2 standard is a high-strength chain widely used in the field of hoisting and lifting. It is usually made of high-strength alloy steel materials, such as alloy steel containing chromium, nickel, molybdenum or 20Mn2, etc. It has excellent strength, toughness and wear resistance, can withstand large loads and extend service life. Chains of different sizes and specifications have different rated load levels to meet the needs of various lifting operations. Generally, it has a safety factor of 4 times, that is, the minimum breaking force of the chain is 4 times the working load limit, providing reliable and safe protection for lifting operations. It is widely used in heavy industry, ports, ships, construction sites, mines, electricity, metallurgy, automobile manufacturing and other fields for lifting, handling, lifting and other operations of goods. It can also be used in hauling, packaging, gardening and other scenes.
Detailed Photos
Product Parameters

G80 Lifting Chain EN 818-2
Stock no.	Size d(mm)	WLL(t)	Pitch t(mm)	Min. inside width b1 (mm)	Max. outside width b2 (mm)	Weight(kg/m)
HS1010203	6	1.12	18	7.8	22.2	0.8
HS1010204	7	1.5	21	9.1	25.9	1.1
HS1010205	8	2	24	10.4	29.6	1.4
HS1010206	10	3.15	30	13.0	37.0	2.1
HS1010207	13	5.3	39	16.9	48.1	3.5
HS1010208	16	8	48	20.8	59.2	5.3
HS1010209	18	10	54	23.4	66.6	6.7
HS1010211	20	12.5	60	26.0	74.0	8.5
HS1010212	22	15	66	28.6	81.4	10.5
HS1010215	26	21.2	78	33.8	96.2	14.5
HS1010216	32	31.5	96	41.6	118.0	22.3

Certifications
Packaging & Shipping
Company Profile
Qingdao Haosail Machinery Co., Ltd is a holding subsidiary of Haosail Group, which was founded in 2008. Loacted in Qingdao, Shandong provience, a beautiful seaside city. As the leading lifting and rigging hardware supplier, we provide integrated supply chain solutions on superior lifting & rigging products, including technical design, quality testing management and after sales services.
Our main products including: Lifting chain and accessories: G80 and G100 lifting chains, chain sling, all kinds of lifting hooks, connecting link, master links etc.; Rigging hardwares: various of lifting shackles, turnbuckles, eye bolts&eye nuts, wire rope sling fitting, wire rope clip, wire rope thimble etc.; Lifting equipment: chain/lever block, lifting blocks and clamps etc.; And other stainless steel rigging products. Our Advantages
Leading manufacture
We are professional high-quality forged product manufacturer in China with more than 20 years' production experience.
Strict quality control
We are committed to providing high-quality products and services to meet our customers' needs and continually exceed their expectations.
Supply chain management
Improve efficiency, reduce costs, optimize quality control and risk management, while promoting innovation and collaboration. Achieve higher competitiveness and sustainable development through effective supply chain management.
Professional Service
We take customer feedback very seriously and have established a dedicated customer support team. We understand the importance of resolving any quality issues promptly and effectively. Our commitment is that if there is a quality issue with one of our products, our team will immediately initiate an investigation to fully understand the issue. We will work hard to identify the root cause and provide a satisfactory solution within 24-48 hours. Customer satisfaction is our top priority and we strive to exceed your expectations with every interaction.
FAQ
Q: What types of rigging products do you provide?
A: We provide a wide range of rigging products, including wire rope rigging, synthetic fiber lifting belt rigging, chain rigging, hooks, shackles, etc., which can meet the lifting and hoisting needs of different industries and working conditions.
Q: What materials are the products made of?
A: Wire rope rigging mainly uses high-quality carbon structural steel; chain rigging often uses alloy steel, such as steel that meets G80 and G100 standards; synthetic fiber lifting belt rigging uses high-strength polyester fiber, polypropylene fiber, etc.; hooks and shackles are generally made of alloy steel or high-quality carbon steel.
Q: What are the specifications and size ranges of rigging products?
A: The diameter of wire rope rigging ranges from a few millimeters to tens of millimeters, and the length can be customized according to needs; the pitch and diameter of chain rigging have various specifications, such as the G80 chain diameter ranges from 6 to 32mm; the width, thickness and load-bearing capacity of synthetic fiber lifting belt rigging have different levels, and the lifting weight can range from hundreds of kilograms to hundreds of tons.
Q: How do you ensure the quality of your rigging products?
A: We have established a complete quality management system, and strictly control every link from raw material procurement, production process to finished product inspection. The raw materials are all from high-quality suppliers, the production process follows strict process standards, and the finished products undergo multiple inspection processes, including tensile testing, flaw detection, etc., to ensure reliable product quality.
Q: Can you provide customized rigging services?
A: Yes. We have a professional technical team that can tailor rigging products for you according to your special needs, such as special specifications and dimensions, special working conditions, etc., to ensure that your personalized use needs are met.
Q: What is the price of rigging products?
A: Product prices vary depending on factors such as product type, specifications, materials, and market raw material price fluctuations. You can inform our sales staff of your specific needs, and we will provide you with the best price as soon as possible.
Q: How long is the delivery time?
A: For regular inventory products, after receiving the order and advance payment, it is generally shipped within 5 working days; for products that need to be produced, the production cycle plus the transportation time is expected to be delivered within 15-30 days after the order is placed. However, if there are special circumstances such as tight raw material supply and peak order period, the delivery time may be extended, and we will communicate with you in advance.
Q: If you encounter problems during use, how to get technical support?
A: You can call our service hotline 0086-0532-55677753 at any time, and our staff will answer your questions and provide technical guidance as soon as possible.

---
