Planner Woodworking Machine Moulders 4 Side Moulder Cutter Machine

Product Description

4 Side Planner Woodworking Machine Moulders 4 Side Planers 4 Side Moulder Cutter Machine
Four side moulder is a kind of woodworking machine tool. Mainly used for processing wood, wood, decorative wood lines, wood flooring and other wood products, to the wood's upper and lower and side of the planer processing.
Main technical parameter:

Processing width	20-160mm
Processing thickness	8-100mm
Feeding speed	5-20m/min
Feeding power	2.2kw
First bottom cutter
power	3.0kw
Speed	6000r/min
Diameter	40mm
Max. Turning circle	140mm
Diameter of side trimming cutter	142x10mm
Left and right cutter
Power	3x2kw
Speed	6000r/min
Diameter	40mm
Max. Turning circle	145mm
First upper cutter
power	5.5kw
Speed	6000r/min
Max. Turning circle	145mm
Diameter	40mm
Cross beam lifting and lowering power	0.75kw
Total power	17.45kw
Pressure of air supply source	0.3-0.4Mpa
Total weight	2000kg

Feature
1.This adopts frequency conversion material feeding,material feeding speed ranges from 6-35m/min. 2.Each main shaft is driven by independent electric motor,cutting force is powerful. 3.Main shaft is adjustable to focus on the front,operation is convenient. 4.Hard chrome plating worktable is durable. 5.Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material. 6.Multi-group drive rollers improve feeding efficiency. 7.Adopts central charging system ,features convenience and promptness. 8.International brands electrical parts are applied for good stability. 9.On the horizontal axis with the front support means to improve the rigidity of the spindle. 10.Spare parts are thick and solid to maintain high precision,high stability and high reliability
control board:

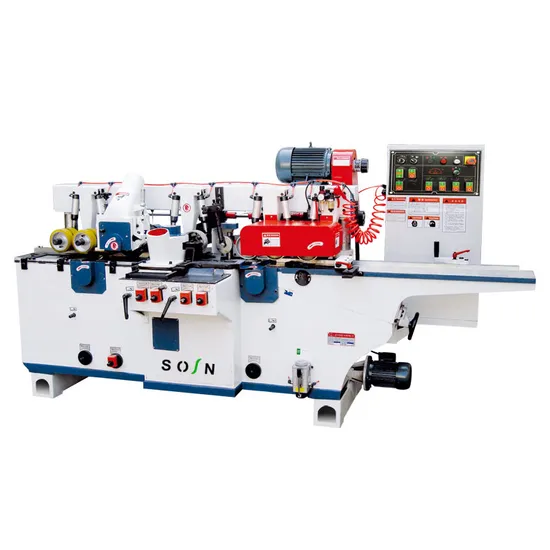

The pictures of four side moulder:
Sample

---
