50-5000L Stainless Steel Reactor for High-Density Polymer

Product Description

Key word
reactor tank
stainless steel tank
mixing tank
Reactor is widely used in industries such as petroleum, chemical industry, paint & printing ink, pharmacy, food etc.
Reactor is used as pressure container for vulcanization, nitration, hydrogenation, alkylation, polymerization, consendation processing such as reaction kettle, polymerization kettle, reator, decomposition vessels etc...
It normally adopts carbon steel (or mild steel), stainless steel (SUS304, SUS321, SUS316L), as well as other compound materials.
The reactor can be divided into Reactor with open flat cover, Reactor with open butt welded flange and closed Reactor. Each kind has its own wide application range and merits.

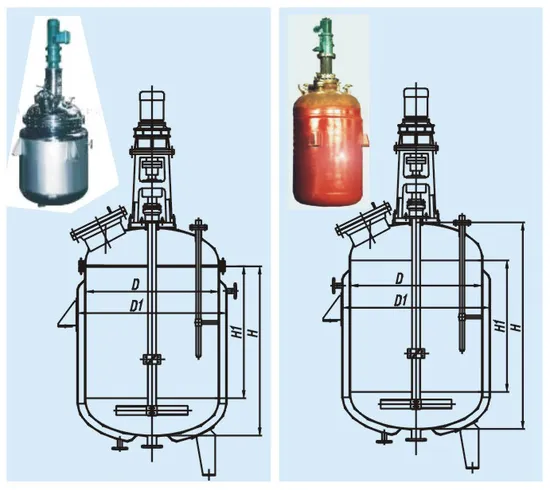

Reactor consists of components such as body, cover, jacket, agitator, driving device, shaft sealing device, support etc...Various seals (packing seal, mechanical seal, magnetic seal), heating&cooling methods (jacket or limpet coil) and mixing types are optional according to different requirements of mixing processing.
Technical parameter

Model	Capacity	Electric power(KW)	Jacket capacity	Diameter inner pot φ(mm)	Outside the pot diameter R(mm)	Total power(kw)	Stirring speed(r/min)
FE50	50L	3χ2	95	400	600	1.1	50-80
FE100	100L	6×2	120	500	700	1.1-1.5	50-80
FE200	200L	6×3	200	600	800	1.1-2.2	50-80
FE300	300L	6×3	250	700	900	1.5-3	50-80
FE500	500L	9×3	290	900	1100	2.2-4	50-80
FE1000	1000L	9×4	560	1200	1400	3-5.5	50-80
FE2000	2000L	12×4	750	1300	1500	5.5-7.5	50-80
FE3000	3000L	15×5	1015	1500	1700	5.5-11	50-80
FE4000	4000L	15×5	1226	1600	1800	11-15	50-80

Broadly understood reactor, i.e. there is a physical or chemical reaction vessel of stainless steel.Stirring allows two or more different materials dispersed among each other to each other, so as to achieve uniform mixing; also can accelerate heat and mass transfer processes.In industrial production, most of the stirring operation is mechanical stirring. Mixing equipment consists of a stirring device, shaft seals and mixing tanks three major components.Stainless steel reactor is widely used in petroleum, chemical, rubber, pesticides, dyes, medicines, food and other production-oriented user andResearch projects of various scientific experiments, for complete hydrolysis, neutralization, crystallization, distillation, evaporation, storage,alkylation,Polymerization, condensation, heating container mixed, heated reaction the process.We can give you affordable stirred tank reactor.All products have to go through five checks in the whole process.We believe that the quality is the soul of an enterprise.
About our company
Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.

---
