US$15,800.00-297,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
SZG-40/50/60/70
Pipe Material
Stainless Steel
Type
Pipe Production Line
Product Name
Welding Steel Tube Mill Industrial Pipe Makin
Main Voltage
220/380/415/420/440V
Pipe Diameter
12.7-50.8mm
Color
Blue, Green, Grey, White or at Your Request.
Production Line Direction
Customized
Tolerance for Length
1mm/6m
Transport Package
Water Proof Film, Box and Pallet
Production Capacity
20 Sets Per Year
Packaging & Delivery
Package Size
2800.00cm * 150.00cm * 180.00cm
Package Gross Weight
25000.000kg
Product Description
Stainless Steel Welding Tube Former Duct Production Line Pipe Producing Machinery
Product Description
√ Internet of Things Intelligent Control System
√ ISO9001 Certificate Approval
√ 20-year Industry Professional Experiences
√ Customer Oriented Technology Team
√ Timely Response After-sales Backup
√ CNC Processing Finishing Rollers
Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Capacity (m/min) | Motor Power (KW) |
SZG-IOT-30 | SST | TIG | 6-16 | 0.4-1.5 | 1.5-7 | 5.5 |
SZG-IOT-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 3-6 | 7.5 |
SZG-IOT-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 2-5 | 11 |
SZG-IOT-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 0.5-3 | 15 |
SZG-IOT-80 | SST | TIG | 89-168 | 1.0-5.0 | 0.5-2 | 18.5 |
SZG-IOT-100 | SST | TIG | 114-219 | 2.0-8.0 | 0.5-1.5 | 30 |
SZG-IOT-120 | SST | TIG | 168-325 | 3.0-10.0 | 0.5-1.0 | 37 |
Features
1. Higher precision: shaft runout ≤0.01mm to ensure stable operation of the equipment.
2. Unique IOT monitoring system.
3. Faster TIG welding speed.
4. above 98% high yield rate: .
5. Real time data tracking and storage.
6. One-key operating functions.
7. Perforation automatic protection.
IOT Introduction
What does the IOT do (Internet of Things)?
1. Issue producting orders via the IOT.
2. Track the processing data in real time.
3. Command on duty line's producing status .
4. Monitor the operating status of each section.
5. Feedback fault codes to the after-sales engineer team automatically.

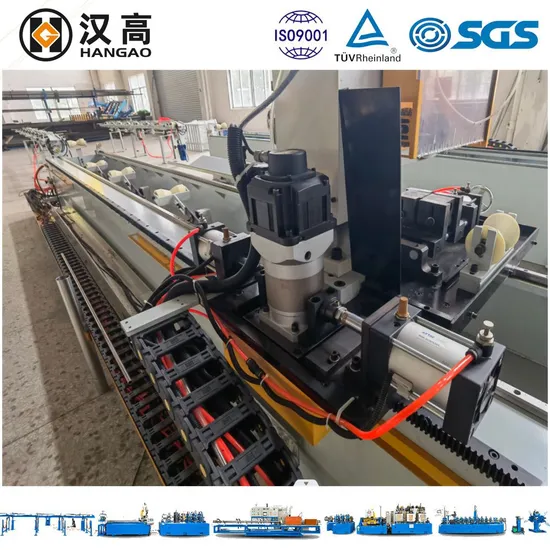

Detailed Photos
Roller Stand Sets
Protective Atmosphere Welding Box
Automatic Lifting Welding Seam Grinding Device
Easily Operated HMI Interface with IOT System
Company Profile
Guangdong Shunde Seko Machinery Co., Ltd. is a manufacturer, specializing in industrial stainless steel pipe making machine, on-line bright annealing machine, weld bead rolling machine, steel pipe polishing machine and other tube mill components. With more than 20-year experience, we integrates designa, development, manufacture, after-sale service and other supporting service. Many top manufacturers like Jiuli, Wujin, Sanhua, USA Plymouth, India Pennar and etc., have become our partner. Our items are exported to Dubai, Russia, India, Thailand, Pakistan, Vietnam and ect..
Our Advantages
Efficiency, Anti-corrosion, Experienced, Team-working
1. Intelligent digital control system to save long term consumption.
2. HMI system to get flexible operation.
3. Powerful database processing and tracking.
3. Self developed IGBT system.
4. Customization.
Efficiency
1. Using electromagnetic control system to correct the arc trajectory, improving working speed at least 25% higher and guaranteeing the welding seam quality. The speed could reach up to 8-10 m/min for the TIG welding with excellent welding seam.
2. Servo motor diriven weld bead rolling machine could be optional. It not only speed up the efficiency, but also save the consumption and factory's room, without hydraulic stations.
Automation
Labor costs saving. One person could monitor 2 production lines in the meanwhile. Our self developed PLC control system could cordinate every section automatically. With HMI touching screen, you could use it easily.
Anti-corrossion
High quality rollers are made of material SKD11, with vacumm gas quenching. Hardness reaches up to 64-66, with CNC high precision processing.
Accuracy
Precise CNC processing could ensure the smooth surface with less scratch happenning when forming. Accurate size could controle the tolerance at the range of ±0.5-1.0 mm.
Visible design of micro adjusting device of roller's lifting, making roller replacement higher operability.
Packaging & Shipping
Intergrated services:
1. Offer reasonable investment plan, reconmmend the appropriate models based on actual maket situation.
2. Offer layout of production line based on customer plant's drawings.
3. Offer the base drawings required for installation.
4. Offer machine's installation and commissioning by sending technicians, until machines operates normally.
5. Offer professional training, until the buyer's operator command machine's operation.
6. Offer and coordinate auxiliary components, accessories, and spare parts.
7. The warranty is 1 year long, excluded situation of human-damage. If you have any question about machine operating, just contact us via mails or phone call, we will solve the problem for you immediately.
FAQ
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3.How to install your machine?
Usually speaking, engineers will be sent to your factory to help to install and adjust the machines. We also have paper installation instructions and videos, teaching you till you command it.
4. Which export port you use?
Any China ports. Commonly, we will use Shenzhen port. But it can be appointed as you like.
5. How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 40% deposit, 60% before shipment (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The machine delivery time is within 45-90 days.
6.Is your goods with ISO9001 or CE certificate ?
Yes, all our goods has ISO certificate. All machines are high quality goods.
7.What is your nature of your company:dealer or factory ?
We are manufacturer with a big factory ,warmly welcome to visit our factory and contact us.
>>
