Cyp7903 Original Sot-89 High Voltage 40V 1A Regulator Chip Ldo

Product Description

CYP7903 original SOT-89 High Voltage 40V 1A regulator chip LDO
DESCRIPTION:
The CYP7903 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
The CYP7903 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
FEATURES:

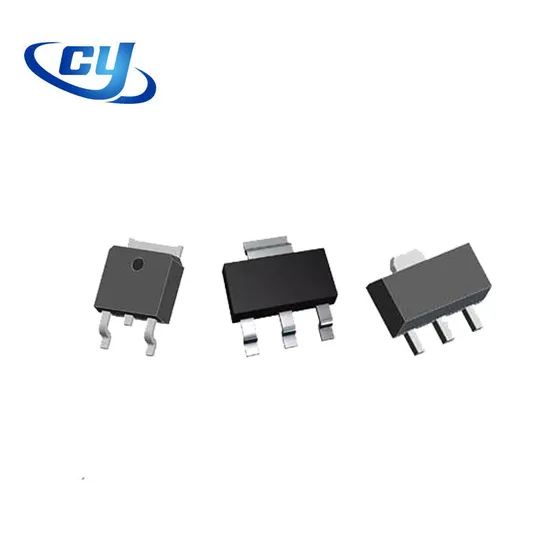

Low Quiescent Current: typical 1.6μA Temperature Stability: ±50ppm/ºC High input voltage: 40V Output voltage accuracy: tolerance ±2% Low temperature coefficient Dropout Voltage: 20mV@IOUT=10mA Maximum Output Current: 1A The chip has the functions of overheat protection, over current protection and output short circuit protection Packages:SOT89-3L,SOT223 and TO252 Applications Industrial control Smart meters, instruments and meters Battery supply set Wireless communication equipment Automotive electronics

---
