Newest Multi-Layer PE Air Bubble Film Extruder/Extrusion Machine

US$16,000.00-49,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WT-2L 2000
Type
Sheet Extruder
Plastic Processed
PE
Product Type
Extrusion Molding Machine
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Multi-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Material
LDPE/LLDPE
Transport Package
Film Packing or Wooden Box Packing
Specification
10*6*2.5m
Trademark
WT
Origin
China
Production Capacity
100

Product Description

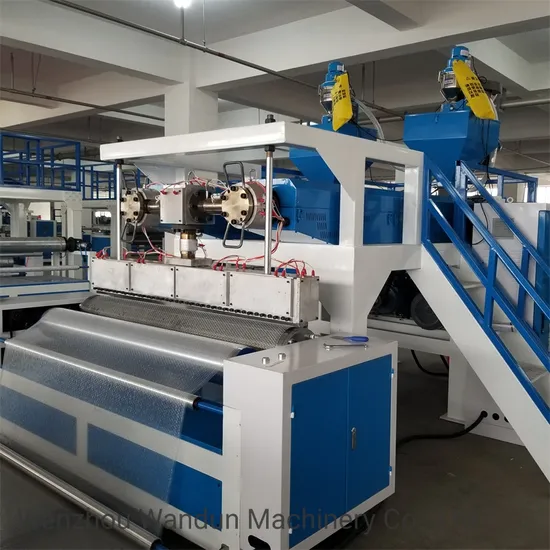

2-layer PE air bubble film machine (2 extruders)
Product Introduction:
1. Main parts: 2 Extruder, Control Panel, Bubble forming section, Winder;
2. To produce 2 layers air bubble film (bubble layer + base layer);
3. Each layer is under individually control, can have different thickness & material formulation and color;
4. Film width from 1,000mm to 3,000mm;
5. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
6. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.
Mechanical Transmission Diagram & Bubble Structure:
Model WT1000-2T WT1500-2T WT3000-2T
Material LDPE/LLDPE/Recycle Material

LDPE/LLDPE/Recycle Material

LDPE/LLDPE/Recycle Material
Finish Film Width(mm)
1000 1500
3000
Screw diameter
Φ55/Φ55
Φ65/Φ65
Φ90/Φ90
Screw L:D ratio 30:1 30:1 30:1
Main motor power 11KW+11KW 18.5KW+18.5KW 37KW+37KW
Capacity(kg/hr) 50-120
80-150 130-200
Thickness(gram/square meter)
25-300 25-300
25-300
Machine power supply 380V,50HZ,3 phase( it can make different voltage for different country)
Total Power(kw)
82
118
196

Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we use PE film for packing or pack it according to customers special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
