| US$3,000.00 | 1 Set (MOQ) |

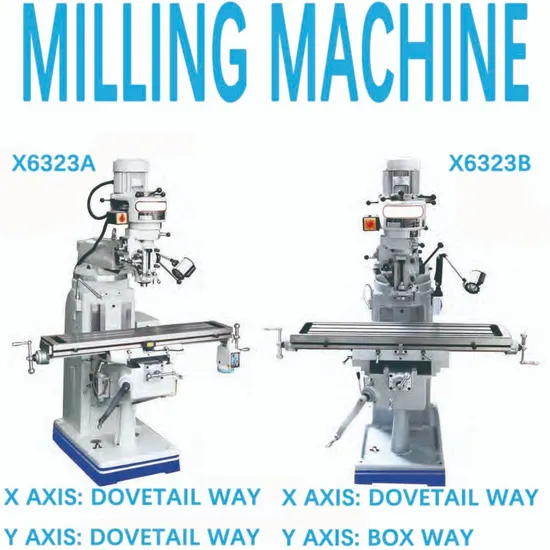

| ITEM/MODEL | X6323A | X6323B | ||
| Table Size | mm | 230x1067(9x42") 230x1246(9x49") | ||
| T Slot | mm | 3x16 | ||
| X Axis Travel | mm | 670/850 | 610/790 | |
| Y Axis Travel | mm | 310 | ||
| Z Axis Travel | mm | 390 | ||
| Ram Cross Travel | mm | 315 | ||
| Distance From Spindle to Table | mm | 0-350 | ||
| Spindle Hole Taper | Standard R8(Oprional NT30/40) | |||
| Quill Travel | mm | 127 | ||
| Spindle Speed | r/min | Standard 16 Shift: 65-4500(50HZ) 80-5440(60HZ) | ||
| Optional Variable Speed: 60-4200 | ||||
| Auto Quill Feed | mm/rev | 0.04(0.0015") / 0.08(0.003") / 0.15(0.006") | ||
| Spindle Motor Power | HP | 3(2.2KW) | ||
| Milling Head Swivel | ±90° | |||
| Milling Head Tilting | ±45° | |||
| Dimension of Package | 1 Miller/Pallet | mm | 1400x1476x2030 | |
| 2 Miller/Pallet | mm | 1450x1570x2080 | ||
| 3 Miller/Pallet | mm | 1450x2180x2080 | ||
| Gross Weight | kg | 1000 | 1100 | |
