Plastic Drum Kettle Jerrycan Blowing Production Making Extrusion Blow Molding Machines Price Lubricant Engine Oil Shampoo Detergent Liquid 1L 5L 10L 25L Bottle

Product Description

Plastic Drum Kettle Jerrycan Blowing Production Making Extrusion Blow Molding Machines Price Lubricant Engine Oil Shampoo Detergent Liquid 1L 5L 10L 25L Bottle
Product Description :

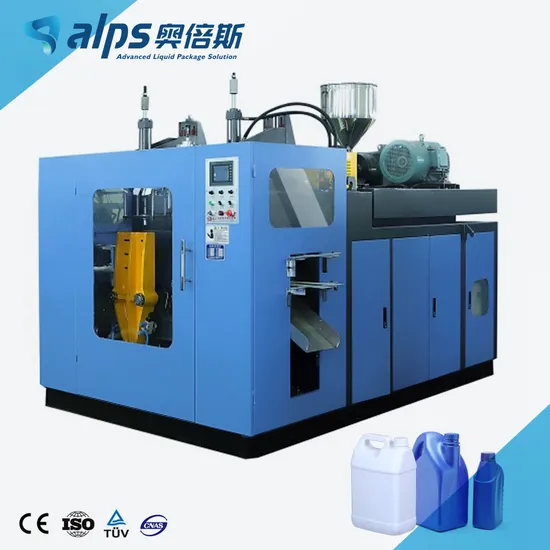

Extrusion blow molding machine for containers from 5ml up to 10L, the high level of reliability, excellent efficiency and flexibility to meet varied customer requirements. The machines process a variety of materials, including HDPE, LDPE, PP, PVC, TPU, PETG and other materials. it has faster production rate in an hour. it can cover the complete production scope starting from the smallest ampoule or tube to beverage packaging, cosmetic containers, large mouth containers and multiple layers with view stripe line containers. *PLC+touch screen: making the operation easy.
*Automatic malfunction alarm: with self-diagnosis,making the malfunction clear at a glance.
*Center input die head: eliminating the knit line completely and making it easy to change the material and color.
*Double linear guide rail: Unique "liner guide" to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.
*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.
*High speed and efficient plasticizing: mixing well and ensuring the produce purity.
Technial Parameter:

Specifications	Unit	Double station
Machine model		EXB60D	EXB70D	EXB90D
Material		PE,PP,PVC,PA etc.
Max container capacity	L	2	5	12
Machine dimension ( L×W×H )		3.1×2.1×2.5	3.4×2.2×2.5	4.5×3.5×2.9
Machine Weight	T	6.3	8.2	11
Clamping unit
Mold platen size ( W×H )	MM	300×380	338×380	550×460
Max mold size ( W×H )	MM	300×350	338×350	550×430
Platen opening storke	MM	130-370	150-500	200-600
Power
Oil pump driving total power	KW	5.5	11	15
Max driving total power	KW	20.5	33	52
Average energy consumption	KW	15-18	23-25	31-34
Blow pressure	Mpa	0.6	0.6	0.6
Extruder unit
Screw diameter	MM	55	70	90
Screw L/D ratio	L/D	24:1
Melting capacity	KG/HR	62	80	140
Extruder power	KW	15	22	37
Die head
Max die-pin diameter	MM	95	135	180
Center distance of double die head	MM	130	160	250
Center distance of three die head	MM	110	110	130
Center distance of four die head	MM	75	85	110

Application:
Company introduction
Alps Machine Co., Ltd is...
*Standardized workshop of total 12, 000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & Korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001: 2001; CE Certificate, SGS, COC, TUV
National Certificate of equipment verification: Standard organisation of Nigeria, CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification
Our compnay complies with ISO9001: 2000 Internation quality management system, also carries out the modern enterprises management systme, to executes quality control during the processes of producing, wins customer' recognition by the high quality products and services.

---
