Prtf260 Modular Counterattack Crushingand Screening Integrated Machine

Product Description

Product Description The modular impact crushing and screening station of Runtian Zhike adopts an integrated design concept, equipped with the NP1213 version of the impact crusher, with strong processing capacity, large crushing ratio, uniform grading, and good product particle shape; The unique three-layer screening design can directly screen out various specifications of finished materials, with an effective screening area of 9, providing strong guarantees for equipment production capacity and finished product screening purity; The economy is very good, greatly reducing the investment cost of customers.

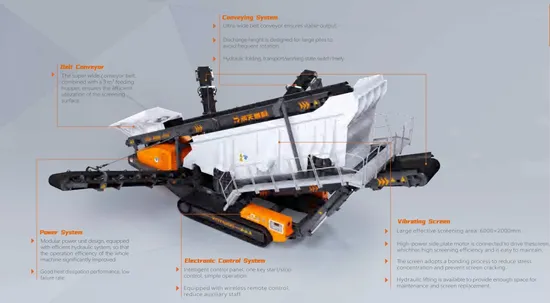

Detailed Photos
Product Parameters

PRTF260M Modular Counterattack Crushing and Screening Integrated Machine
FeedingDevice	Max.feeding Size 600mm
	Hopper Volume 5m³
Vibrating Feeder	Vibrating Motor Power 2*5.5kW
Crusher	Crusher Mode Np1213
	Crusher Motor Power 250kW
Main Conveying Belt	Belt Width B1000mm
	Power 15kW
Mixed Material ConveyingBelt	Belt Width B1000mm
	Power 11kW
Returmed Materia Conveying Belt	Belt Width B650mm
	Power 5.5kW
Transmission Conveying Belt	Belt Width B500mm
	Power 3kW
Vibrating screen	Number of Sieve Layers 3
	Screen Mesh Srea 5000mm*1800mm
WholeMachine	Total Power 330kW
	TotalWeight 55t
	Working Mode External Power Supply
	Working Dimension 19.2m*14.7m*4.8m
	TransportationDimension Disassembly &Shipping

---
