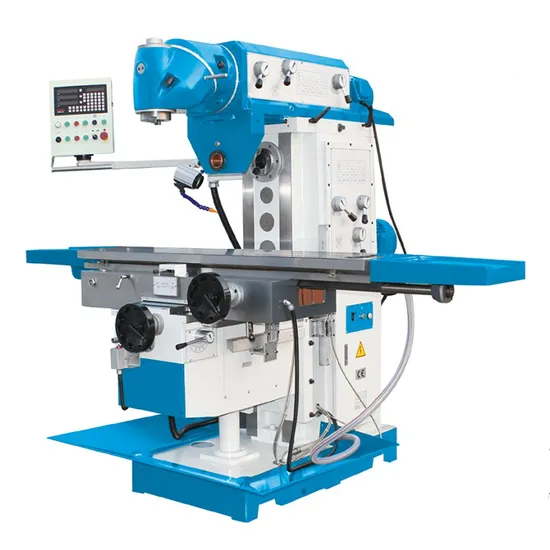

XL6436 RAM Milling Machine CNC Machine Is Optional

Product Description

Product Description
DRO is optional accessories
Rotary tab Ie can be ordered at speciaI request
Machine with automatic feed controlled one servo motor in XYZ-axis
Use one handle to control forward and reverse movement in XYZ-axis
Detailed Photos

Product Parameters

Specification	Unit	XL6436C	XL6436CL
Table size	mm	1325 x 360	1600 x 360
Table travel (X/Y/Z)	mm	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750/20-500/15-375
Snindle taner		7:24 ISO50(H)
		7:24 ISO50(V)
Arm travel	mm	550
Distance between soindle nose and table surface	mm	175-625
Distance between horizontal nose and table surface	mm	0-450
Distance between soindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750(V)
		12 steps 60-1800(H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 ( H ) 4(V)
3 to feed Ac servo motor torque	N.m	15
Overall size	mm	2245x2100x2000	2520x2100x2000
Net weight	kg	2750	2800

DRO is optional accessories
Rotary tab Ie can be ordered at speciaI request
Machine with automatic feed controlled one servo motor in XYZ-axis
Use one handle to control forward and reverse movement in XYZ-axisDRO is optional accessories
Rotary tab Ie can be ordered at speciaI request
Machine with automatic feed controlled one servo motor in XYZ-axis
Use one handle to control forward and reverse movement in XYZ-axis

---
