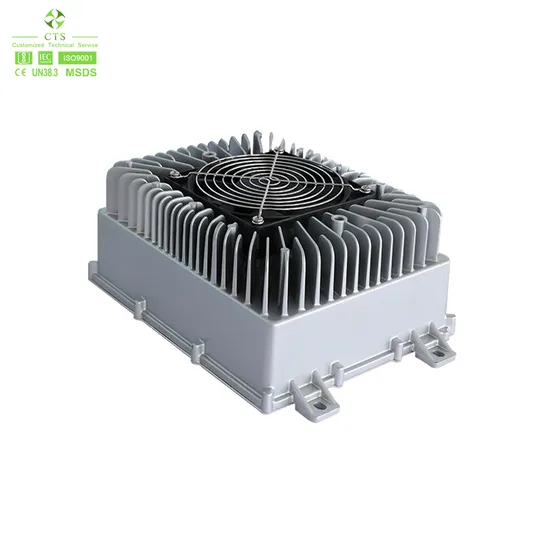

48V 2kw Full Sealed LiFePO4 Battery Charger for Scooter Bike Metal Case Charger Obc IP67

Product Description

Overview 48v 2kw Full Sealed Lifepo4 Battery Charger For Scooter Bike Metal Case Charger Obc IP67 Product parameters of 3.3KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSC3-4840A	AC90~264V	48V	66.0V	40A
CTSC3-6040A	AC 90~264V	60V	82.5V	40A
CTSC3-7240A/7220C	AC90~264V	72V	99.0V	40A/20A
CTSC3-8440A/8420C	AC 90~264V	84V	115.5V	40A/20A
CTSC3-9632A	AC90~264V	96V	132V	32A
CTSC3-12025A	AC90~264V	120V	165V	25A
CTSC3-14423A	AC90~264V	144V	198V	23A
CTSC3-19210A	AC90~264V	192V	264V	10A
CTSC3-31210A	AC90~264V	312V	440V	10A
Dimensions:294×210×111(mm) Weight:6.2kg

Product parameters of 1.5KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSZ1P-1230A	AC90~264V	12V	16.5V	30A/30A
CTSZ1P-2430A	AC 90~264V	24V	33.0V	30A/30A
CTSZ1P-3625A	AC90~264V	36V	49.5V	25A/25A
CTSZ1P-4825A	AC 90~264V	48V	66.0V	25A/20A
CTSZ1P-6020A	AC90~264V	60V	82.5V	20A/15A
CTSZ1P-7218A	AC90~264V	72V	99.0V	18A/12A
CTSZ1P-8015A	AC90~264V	80V	110V	15A/11A
CTSZ1P-9610A	AC90~264V	96V	132V	10A
Dimensions:282×146×82(mm) Weight:3.0kg

Product parameters of 2KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSZ2P-2440A	AC 90~264V	24V	33.0V	40A/40A
CTSZ2P-3640A	AC90~264V	36V	49.5V	40A/30A
CTSZ2P-4835A	AC 90~264V	48V	66.0V	35A/25A
CTSZ2P-6030A	AC90~264V	60V	82.5V	30A/20A
CTSZ2P-7225A	AC90~264V	72V	99.0V	25A/18A
CTSZ2P-8022A	AC90~264V	80V	110V	22A
CTSZ2P-8418A	AC90~264V	84V	115V	18A/12A
CTSZ2P-9618A	AC90~264V	96V	132V	18A/10A
Dimensions:282×168×90(mm) Weight:3.8kg

╣Advantages 1. Input Wide Voltage
Input Wide Voltage Design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world.
2. Fully-sealed Pouring Process
Fully-sealed and heat-condu cting slica gel process, protection level IP67, good seismic resistance, good heat dissipation performance and long service life.
3. High Relability
Wide temperature range: 40 °c -+60 °c, 100% full load aging test, soft switching technology; low switching loss of power devices, high efficiency (> 93%) , energy saving and power saving
4. High Safety
Waterproof, shockproof, acid resistant, dustproof, and reinforced isolation design ensure safe operation under harsh conditions.
5. Dynamic Charging Curv
Charger with computer interface, can adjust charging mode on site. Suitable for lead-acid, ithium batteries and other batteries. to achieve the best matching Equipped with CAN communication intertace to realize real-time communication with BMS.
6. Temperature Compensation
Intelligent temperature compensation is applied to the battery during the charging process to avoid damage caused by overcharging or undercharging, and to maximize the battery's lifespan.
╣Application CTS charger is suitable for lithium batteries, lead-acid batteries, nickel hydrogen batteries, etc. It can be used for cyclic charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, sanitation vehicles, golf carts, patrol vehicles, beach trucks, ships, communication equipment, AGV intelligent robots, and special equipment. ╣OUR FACTORY Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery packs and battery accessories, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric motorcycle batteries, energy storage battery system, Mobile charging station and battery accessories etc... With Twenty-people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world,such as ,America, Australia,Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...

---
