10m3 Large Bulk Cryogenic Ln2 Liquid Nitrogen Storage Tank in GB

Product Description

Product Description LNG series tanks, manufactured to GB150 and GB18442 Pressure Vessel codes, available in liquid nitrogen, oxygen, argon or natural gas service, are offered in a wide range of sizes for applications requiring Maximum Allowable Working Pressure of 116, 174 and 232 psig(0.8, 1.2 and 1.44 Mpa) as standard.
Qiulin LNG series tanks, vacuumed by the advanced tech, have an excellent insulation performance,low maintenance cost and three year vacuum warranty. Easy operation, reliable system, convenient installation.
Except for GB150 tanks, Qiulin also design and manufacture tanks with ASME Pressure Vessel codes to meet client's various demands. And the maximum storage is up to 250 cube meters. Qiulin also provides vaporizers, pressure control manifolds, vacuum insulated pipelines and other components to build a perfect solution.

Product Parameters

Model	Gross Capacity m²	Net Capacity	MAWP	Sze (L*WH) (**)	Empy Weight	NER(N ()	Fow Capacity	Insulaton	Remarks
		m²	Mpa	:mm	kg	%/Day	m²H
HN11/0.8-GB	11.1	10	0.8	6300×2216×2676	6535	0.55	350	Perite	Horizontal, vaporization Station
VN11/0.8-GB	11.1	10	0.8	6380×2465x2350	6590	0.55	350	Perite	Vertical, vaporization Station
HN16/0.8-GB	15.96	14.36	0.8	8300×2216x2570	8480	0.53	350	Perite,	Horizontal, vaporization Station
VN16/0.8-GB	15.96	14.36	0.8	8380×2465×2350	8430	0.53	350	Perite	Vertical, vaporization Stat ion
HN20/0.8-GB	19.8	17.8	0.8	9900×2216×2570	9785	0.5	350	Perite	Horizontal, vaporization Station
VN20/0.8-GB	19.8	17.8	0.8	9980×2465×2350	9915	0.5	350	Perite	Vertical, vaporization Station
HN31/0.8-GB	30.4	29.73	0.8	10540×2620×2876	14670	0.44	500	Perite	Horizontal, vaporization Station
VN31/0.8-GB	30.4	29.73	0.8	10730×2860×2740	151	0.44	500	Perite	Vertical, vaporization Station
HN50/0.8-GB	49.22	44.3	0.8	12510×2920×3270	21550	0.35	800	Perite	Horizontal , vaporization Station
VN50/0.8-GB	49.22	44.3	0.8	12820X3150X3000	23350	0.35	800	Perite	Vertical, vaporization Station
HN60/0.8-GB	60.0	54.0	0.8	14910X2920X3270	25380	0.31	800	High Vacuum Multlayer	Horizontal , vaporization Station
VN60/0.8-GB	60.0	54.0	0.8	15220×33150×3000	27430	0.31	800	Perite	Vertical, vaporization Station
HN60/1.44-GB SI	60.0	54.0	1.2	13530×2924×3230	25050	0.14		High Vacuum Mutlayer	Horizonta. gas fling Station
VN60/1.44-GB I	60.0	54.0	1.2	15220×2924×3100	26300	0.141	/	Perite	Vertical,gas filing Station
VN100/0.8-GB	100	90	0.8	3730×3870×14800	41600	0.25		Perite	Vertical, vaporization Station
VN150/0.8-GB	150	135	0.8	3730×3870×20950	57000	0.25	/	Perite	Vertical, vaporization Station
VN200/0.8-GB	200	180	0.8	3730×3870×27200	73300	0.2		Perite	Vertical, vaporization Station

Company Profile

Jiangsu Qiulin Special energy equipment joint stock Co.,Ltd founded in 2010, and mainly engaged in all kinds of non-standard vessels with or without pressure, cryogenic storage tank, coal water slurry complete equipment, steel structure etc.
Qiulin owns advanced design capabilities,is equipped with modern manufacturing facilities,and a full range of in-house test equipment. Over the years, we adhere to the "customer-oriented" business philosophy to provide our customers with all kinds of equipment and have the competitive edge in quality, delivery and price. Qiulin has diversified manufacturing capabilities, mainly focused on the following two areas:
I. Pressure Vessel equipment
We design individually to customer requirements, and manufacture pressure vessel (storage tank& reactors & heat exchanger, columns.etc), cryogenic storage (Liquefied natural gas, liquefied industrial gases, gas production Skid etc). in accordance with the following standards and codes:
· China Code GB150 and GB151 for A1, A2 and A3 Pressure Vessel design and manufacturing license;
Class B3 Special cylinder manufacturing license;
GC2 class pressure piping installation license, tank container CCS
· ASME Boiler and Pressure Vessel Code, Section VIII, Div.1 - (U Stamp, NB Stamp)
· Pressure Equipment Directive 2014/68/EU (PED) for the European market PED
· Cryogenic storage apply to the North American market DOT/CNR
· KGS certificate for Korean market
II. Other custom products
· Metallurgy, mineral equipment fabrication, including coal water slurry complete equipment, mill, furnace, casting machine, disk machine, etc.
· Paper machine and marine equipment
· Process modules and skid equipment fabrication, including detailed design, material purchasing, fabrication, assembly, painting, insulation, electrical and instrumentation, etc.
· Custom prefabricated steel structures
Qiulin has been partner of many domestic and overseas famous company like CNPC, CNOOC, Air Liquid, Air products, Messer, Linder Yingde gases, Fuel Tech, ABB, MO,Andritz, Reel, Morimatsu etc.

Established	2010
Export rate	30%
Site Area	100000 square meter
Supply Scope	Pressure vessel, storage tanks, heat exchangers, reaction kattles, adsorber for air separation etc. Cryogenic liquid storage tanks, skid of gas production. Steel structure fabrication, steel structure equipment
Application	Oil and Gas, LNG and Marine , petrochemical, metallurgy, food and pharmaceutical, environmental protection
License	_Design and Fabrication License for Category I ,II & III (Class A1 and A2) of Chinese standard pressure vessel _ASME U,DOT/CNR _API, EN,AWS _ISO9001:2008, ISO14001:2004, OHSAS18001:2007
Production capacity	Monthly steel structure fabrication:3000T Maximum loading weight:200T Maximum diameter: 9.2M Lifting Height: 14M

Fabrication Site
Main Equipment
Certifications

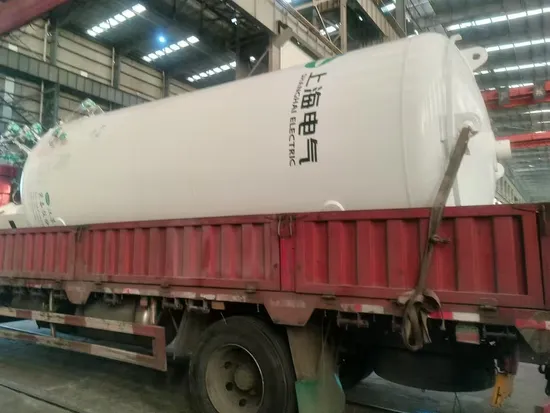

Packaging & Shipping
Project Case
Our Client
Trade Show
Our Other Product
FAQ Q1: Are you manufacturer?
A1: Yes, we're an experienced manufacturer. Q2: Can we use our LOGO and design? A2: Of course, we offer OEM/ODM service. Q3: What's the sample cost? A3: The sample and shipping charges will be required. Once the mass production order is placed, the sample charges will be deducted. Q4:Do you inspect the finished products? A4: Yes, each step during production will be inspected by our Qc team. Q5: What's the payment term? A5: Normally TT,LC, detail to be discussed Q6:Any warranty for the goods? Q6:Normally 1 year warranty after delivery except artificial damage. For Vacuum is 3 years.

---
