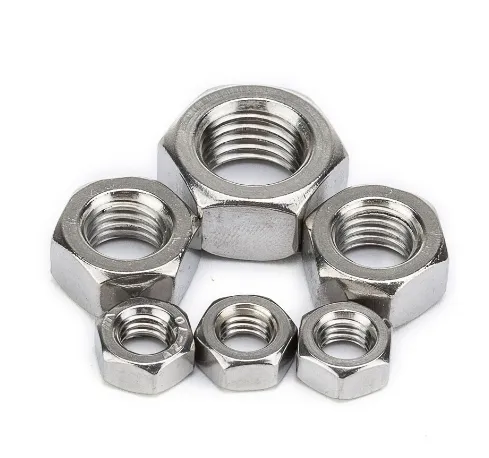

Fastener Factory Stainless Steel or Carbon Steel DIN934 Hexagon Nuts

Product Description

DIN934 HEX nuts 1. Standard Code: DIN934
2. Material: C1010 10B21 40CR
3. Grade: From Grade 4 to 12
4. Sizes: From M3 to M30
5. Surface: Black, Zinc, Darcromet, Phosphated and so on.
6.manufacturing processes :cold forging
Product Description

Thread Size d			M1	M1.2	M1.4	M1.6	(M1.7)	M2	(M2.3)	M2.5	(M2.6)	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)	M56	(M60)	M64	(M68)	M72	(M76)	M80	(M85)	M90	M100	M110	M125	M140	M160
P	thread distance	UNC	0.25	0.25	0.3	0.35	0.35	0.4	0.45	0.45	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5	5.5	5.5	6	6	/	/	/	/	/	/	/	/	/	/
		UNF1	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	1	1	1.5	1.5	1.5	1.5	2	1.5	2	2	2	2	3	3	3	3	3	3	4	4	4	/	6	6	6	6	6	6	6	6	6	6
		UNF2	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	1.25	1.25	/	/	2	1.5	2	/	/	/	/	/	/	/	/	/	/	/	/	/	4	4	4	4	4	4	4	4	4	/	/
m	max		0.8	1	1.2	1.3	1.4	1.6	1.8	2	2	2.4	2.8	3.2	4	5	5.5	6.5	8	10	11	13	15	16	18	19	22	24	26	29	31	34	36	38	42	45	48	51	54	58	61	64	68	72	80	88	100	112	128
	min		0.55	0.75	0.95	1.05	1.15	1.35	1.55	1.75	1.75	2.15	2.55	2.9	3.7	4.7	5.2	6.14	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7	20.7	22.7	24.7	27.4	29.4	32.4	34.4	36.4	40.4	43.4	46.4	49.1	52.1	56.1	59.1	62.1	66.1	70.1	78.1	85.8	97.8	109.8	125.5
mw	min		0.44	0.6	0.76	0.84	0.92	1.08	1.24	1.4	1.4	1.72	2.04	2.32	2.96	3.76	4.16	4.91	6.11	7.71	8.24	9.84	11.4	11.9	13.5	14.2	16.6	18.2	19.8	21.9	23.5	25.9	27.5	29.1	32.3	34.7	37.1	39.3	41.7	44.9	47.3	49.7	52.9	56.1	62.5	68.6	78.2	87.8	100
s	max		2.5	3	3	3.2	3.5	4	4.5	5	5	5.5	6	7	8	10	11	13	17	19	22	24	27	30	32	36	41	46	50	55	60	65	70	75	80	85	90	95	100	105	110	115	120	130	145	155	180	200	230
	min		2.4	2.9	2.9	3.02	3.38	3.82	4.32	4.82	4.82	5.32	5.82	6.78	7.78	9.78	10.7	12.7	16.7	18.7	21.7	23.7	26.2	29.2	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1	82.8	87.8	92.8	97.8	103	108	113	118	127.5	142.5	152.5	177.5	195.4	225.4
e	min		2.71	3.28	3.28	3.41	3.82	4.32	4.88	5.45	5.45	6.01	6.58	7.66	8.79	11.1	12.1	14.4	18.9	21.1	24.5	26.8	29.6	33	35	39.6	45.2	50.9	55.4	60.8	66.4	71.3	77	82.6	88.3	93.6	99.2	105	111	116	122	127	133	144.08	161.02	172.32	200.57	220.8	254.7
	*		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	170	196	216	248
