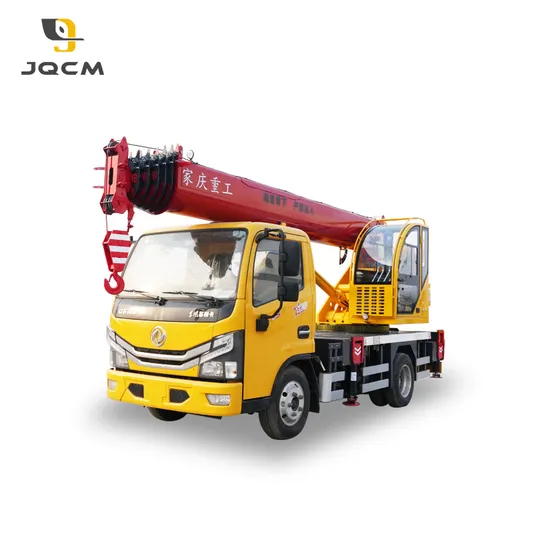

| The National VI standard truck crane is flexible in the city and is suitable for rural and urban construction, water conservancy project construction, etc. In terms of cargo loading and unloading, it can lift equipment, steel and other heavy items, improve loading and unloading efficiency, and reduce labor costs and safety risks. In terms of construction, it can be used to lift building materials, equipment and machinery, and complete tasks such as high-altitude operations. | |||||
| Brand | JQCM | Tires | 7.00R16LT | Slewing mechanism | Vertical type (with balance valve) |
| Chassis model | Foton M5 | Brake system | Air brake (ABS) | [Reducer model | Planetary reducer |
| Vehicle size | 5995*1870*2850mm | Outriggers | 5 fully hydraulic outriggers | Steering mechanism | Power steering (power-assisted) |
| Horizontal span of outriggers | 5950mm | Wheelbase | 2800mm | Main lifting mechanism | 5-ton/8-ton winch |
| Total length of boom | 25m/30m/35m | Rated lifting capacity | 5000kg | Leg longitudinal span | 3400mm |
| Maximum lifting height | 22m/25m | Working lights | Two | Protective device | Two-way hydraulic lock |
| Boom structure type | 5m 5knots/6knots/7knots | Outrigger extension length | Dual 2m | Hydraulic pump | Single pump |
| Engine model | Full diesel (optional) | Slewing speed | 0-3rpm | Slewing bearing | 1050-1200mm customizable |
| [Engine power | 110kw (150 horsepower) | Lifting operation method | Push rod operation | Chassis | Optional |
| Gearbox model | Wanliyang 5-speed/8-speed gearbox | Frame size | 250/300*150mm | Accessories | Additional |
| Turn radius | 1.7m | Heavy duty configuration | Optional | Various accessories | Optional |
