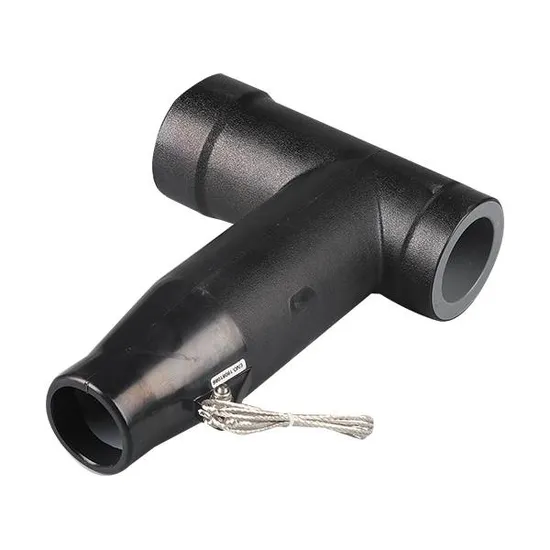

15kv 630A Deadbreak T Fore Connector

Product Description

Hot Sales
Product Details
Application:
For connection of polymeric cable to transformers, switch gear, motors and other equipment with a pre-molded separable connector. For indoor and outdoor installations. System voltage up to 24 kV. Continuous current 630 A (900 A overload for 8 hours). Cable particulars: - Polymeric cable (XLPE, EPR, etc.) - Copper or aluminum conductors - Semiconducting or metallic screens - Conductor size 12kV 25-120 mm2 24kV 25-400 mm² Features:
Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.Can be used under the circumstancesBuilt-in capacitance test point to determine the circuit status or install a fault indicator.No minimum phase clearance requirements.Mounting can be vertical, horizontal, or any angle in between.
Installation:
When finish the installation of elbow connector, the power can be supply directly.According to the Installation Instruction SheetProduct Structure:(any other special requirement, please contact our sales engineer)
Product Structure:
1 TWO HEAD SCREW: To make sure have a good contact with the apparatus bushing.
2,INSULATION: Molded EPDM insulating rubber is formulated and mixed in-house to ensure high quality.
3,INSULATING PLUG: Molded epoxy insulating plug provides excellent electrical,thermal and mechanical reliability.
4,SEMI-CONDUCTIVE INSERT: Molded EPDM conducting rubber screen controls electrical stress.
5,STRESS RELIEF: The configuration of the outer screen and the cable adapter provide cable stress relief.
6,GROUNDING EYE: Molded into the extremal screen for connection of an earthing wire.
7,SEMI-CONDUCTIVE SHIELD: Molded EPDM conducting rubber mates with the cable screen to maintain screen continuity and ensure that the assembly is at earth potential.
8,CONDUCTOR CABLE LUG: Alumin
Kit Contents:
Front T body
Insulate plug
Sealing cap
Adaptor (stress cone)
Crimp connector
Stud bolt
Silicone
Cleaning paper
(any other special requirement, please contact our sales engineer)

Reference No.	Conductor Cross Section(mm²)	stretch range over insulation(mm)
AH QJ-12/630-25	25	16.6
AH QJ-12/630-35	35	17.6
AH QJ-12/630-50	50	19
AH QJ-12/630-70	70	20.6
AH QJ-12/630-95	95	22.2
AH QJ-12/630-120	120	23.6
AH QJ-12/630-150	150	25.2
AH QJ-12/630-185	185	26.7
AH QJ-12/630-240	240	29
AH QJ-12/630-300	300	31.2
AH QJ-12/630-400	400	34.4
AH QJ-12/630-500	500	37.2
Reference No.	Conductor Cross Section(mm²)		stretch range over insulation(mm)
AH QJ-24/630-35	35		18.6
AH QJ-24/630-50	50		19.6
AH QJ-24/630-70	70		21
AH QJ-24/630-95	95		22.6
AH QJ-24/630-120	120		24.2
AH QJ-24/630-150	150		25.6
AH QJ-24/630-185	185		27.2
AH QJ-24/630-240	240		28.7
AH QJ-24/630-300	300		31.1
AH QJ-24/630-400	400		33.2

---
