Short Cycle Lamination Hot Press Machine for MDF/Particle Board

Product Description

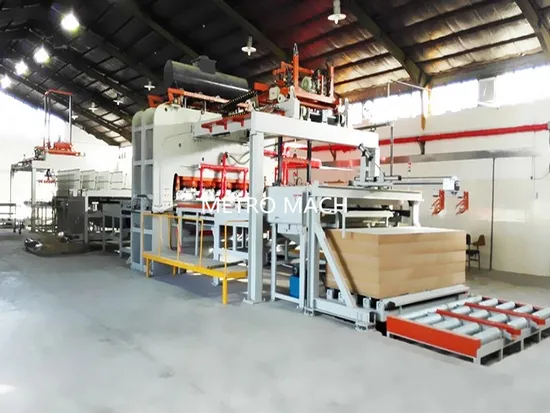

1400t Automatic Short Cycle Lamination Hot Press Machine
This short cycle press lamination hot press machine mainly used to do the lamination for furniture board, laminated flooring and decorative material.
This machine mainly divided into: single(double) side lamination press with overhead oil cylinder, single side lamination press with bottom cylinder, laminated flooring press machine and wood profiles face lamination press machine. This machine can be equipped with several kinds of stainless steel plate for high-glossy, matte, S.F., embossing pattern's pressing lamination. Regarding laminated flooring press machine, pressure range: 1400T-3200T, we can design working size and specification according to your different board size
Parameters:

Model	TLY114×8/14-II
Nominal gross pressure	14000Kn
Direction of feeding plate	HORIZONTAL
Layer Counting	1 Layer
Distance between hot platens	200mm
Numbers of hot platens	2 pcs
Dimension of Hot Platens	2600×1400×140mm(up) 2600×1400×100mm(down)
Numbers of Cylinder	6 Pcs
Diameter of Cylinder	Φ340mm
Stroke of Cylinder	200mm
Pressurization	≤25Mpa
The Position of Cylinder	up
Empty Closing Time	About 2-3 s
Max Temperature	<210
Numbers of Lift Cylinder	4pcs
Diameter of Cylinder	Φ80mm, Φ30
Stroke of Cylinder	200mm
High Pressure Pump Flowing	About 89L/min
Allowed Pressure	≤25Mpa
Power	37Kw
Pressure of Unit Plate Blank	47Kgf/cm2
Control Method	Automatic pump station
Frame steel plate thickness	60mm
Total weight	37000kgs

Total pressure	Main cylinder Diameter	Number of cylinders	panel size
1200Ton	φ320mm	6pcs	4x8ft/9ft, 5x8ft, 6x8ft, 6x9ft, 7x9ft etc
1400Ton	φ340mm	6pcs
1600Ton	φ320mm	8pcs
1800Ton	φ340mm	8pcs

Package & Shipping Package:The normal package for machine is containers,nude package,but the spare parts is wooden box.If export to European countries,we will use PE film for packing it or according to your requests.
Shipping:We will ship the products in 30 days after payment.
Our Service
Pre-sale services:
1)Provide the free consultation of the equipment.
2)Provide the standard device and the flow chart.
3)According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment
4)Welcome to visit our factory
Services during the sales:
1)Inspect the machine before leaving the factory
2)Oversea install and debug the equipment
3)Train the first-line operator
After sale services:
1)24 hours online service
2)Provide the VIDEO with install and debug the equipment
3)Provide technical exchanging

---
