US$3,000.00-5,000.00
|
1 set
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Max.drilling dia(mm)
50mm
Distance from spindle nose to table surf
260-1150mm
Distance between spindle axis and column
360-1050mm
Spinde speeds range
78, 135,240,350,590,1100 rpm
Spinde speed step
6 steps
Shipping terms
EXW,FOB,CFR,CIF
Transport Package
Plywood Case
Specification
1500*705*2250
Production Capacity
2000 Pieces/Year
Product Description

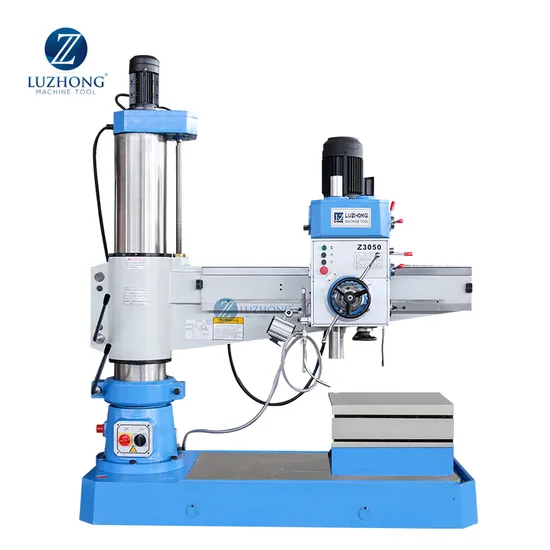

Small Bore Drill Machine Z3050x11 Radial Mini Drilling Machine Product Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed Product Parameters
Product main technical parameters:
| Specifications | Z3050X11 | Z3050x14 |
| Max.drilling dia(mm) | 50 | 50 |
| Distance from spindle nose to table surface(mm) | 260-1150 | 330-1310 |
| Distance between spindle axis and column surface(mm) | 360-1050 | 300-1250 |
| Spindle travel (mm) | 210 | 210 |
| Spindle Cone | 5 | 5 |
| Spinde speeds range(r.p.m) | 78, 135,240,350,590,1100 | 78,135,240,350,590,1100 |
| Spinde speed step | 6 | 6 |
| Spinde feeding range(r.p.m) | 0.10-0.56 | 0.10-0.56 |
| Spinde feeding step | 6 | 6 |
| Rocker rotary angle | ±90° | ±90° |
| Main motor power(KW) | 4 | 4 |
| Movements motor power(KW) | 1.5 | 1.5 |
| N.W/G.W(Kg) | 1700 | 2000 |
| Overall dimensions(mm) | 1550×705×2250 | 1950*810*2450 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
