Basic Info.
Harvest method
Cutting and Picking
Portable Harvester Type
Seat
Certification
ISO9001:2008, CE
Application Field
Agriculture
Transport Package
Wooden Case
Production Capacity
500units/Month
Product Description
PRODUCT DESCRIPTION OF 4L-0.9A/B COMBINE
Model: 4L-0.9A
Application: Rice, Wheat, Barley
Harvest method: Cutting
Transmission: Soft Shaft
Condition: New
Trademark: Mingsin
Type: Combine Harvester
Power Source: Diesel
Drive Type: V-belt
Portable Harvester Type: Combine Harvester
Color: Blue
Application Field: Agriculture
Transport Package: Steel Structure Wooden Case
Product Description

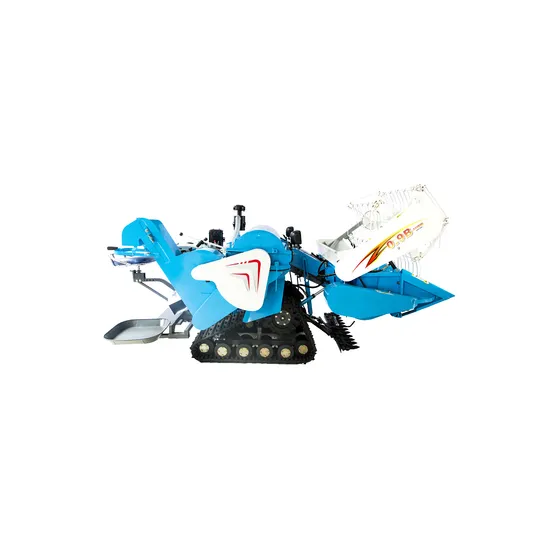

Mini Combine Harvester 4L-0.9A , Most Popular!
What is mini-combine harvester?
4L-0.9 series mini combine harvester is a new type 1000mm width full feeding, self-propelling combine harvester. It adopts front-wheel-drive, triangle supporting and independent operation, combines harvester, threshing and cleaning functions in one machine. And it is characterized by its mini size, easy operation and superior performance and so on.
What can it do?
It is designed for harvesting of WHEAT, RICE and BARLEY, OATS. Suitable for SMALL, NARROW, TERRACING field, muddy field and NOT EASILY SINK.
Gather grain is smoothly discharged the screw-type grain discharge method that operates at high speed to minimize any possible damage. Another feature is that even rainy season and wet crops are easily working due to the fact that the durability self-priming blower fan and triangle caterpillar.
How is the performance?
Operation Efficiency: 0.05~0.1 hectare/hr
Improving overall operational efficiency is the simple and compact structure that contributes to saving both time and labor.
Max. Power:
12.5HP 188F DIESEL ENGINE
The reasonable power supply design makes it possible to complete operations in an exceptionally speedy manner.
Min. Loss: Less than 2%
Max. Operational Speed: 2.22m/s
Light Weight: 450KGS
Technical Parameters
| Model | 4L-0.9A |
| Dimension | Overall Length(mm) | 2720 |
| Overall Width(mm) | 1300 |
| Overall Height(mm) | 1210 |
| Weight | Rubber Wheel/Caterpillar (kgs) | 400/450 |
| Air-cooled single cylinder 4 stroke diesel engine |
| Engine | Model | 188F diesel |
| Displacement | 0.498 |
| Output(kw/hp) | 7.5/10 |
| Fuel Tank Capacity(L) | 5.5 |
| Driven System | Crawler | Track Gauge | Rubber lug wheel with thick rim |
| Width × Length | 255mm × 790mm |
| Ave. Pressure | 0.21Kpa |
| Clearance | 210mm (Minimum) |
| Transmission | Type | 3 - Range (3F / 1R) |
| Speed(m/s) | Low:0.4 Medium:0.7 High:2.2 |
| Steering | Type | Clutch and Brake |
| Cutting | Pickup Reel | Diameter × Width(mm) | 565 × 904.5 |
| Height Adjustment | Hydraulics |
| Cutting Bar Length(mm) | 1000 |
| Threshing | Revolutions(rpm) / Concave Area (m2) | 1257 / 0.728 |
| E - System | 4A, 12V lithium battery starting, lighting equipment with engine oil alarm system |
| Performance | Harvesting Performance(Hectare/Hour) | 0.05-0.1 |
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: Three years guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2. Q: What is your delivery time?
A: Normally, it takes 15-20 days to delivery after your T/T deposit receipt or L/C at sight
3.Q:How many harvesters can be loaded in one container?
A:1)20 Feet Container loads:
For Combine: 6 sets 4L-0.9A
2) 40 High Cube Container loads:
For Combine: 12 sets 4L-0.9A
4.Q:What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
PRODUCT DESCRIPTION OF 4L-0.9B COMBINE
Model NO.: 4L-0.9B
Application: Rice, Wheat, Barley
Harvest method: Cutting
Transmission: Soft Shaft
Certification: SGS, ISO9001:2008
Condition: New
Trademark: Mingsin
Type: Combine Harvester
Power Source: Diesel
Drive Type: V-belt
Portable Harvester Type: Combine Harvester
Color: Blue
Application Field: Agriculture
Transport Package: Steel Structure Wooden Case
Product Description
Mini Combine Harvester 4L-0.9B , Most Popular!
What is mini-combine harvester?
4L-0.9 series mini combine harvester is a new type 1000mm width full feeding, self-propelling combine harvester. It adopts front-wheel-drive, triangle supporting and independent operation, combines harvester, threshing and cleaning functions in one machine. And it is characterized by its mini size, easy operation and superior performance and so on.
What can it do?
It is designed for harvesting of WHEAT, RICE and BARLEY, OATS. Suitable for SMALL, NARROW, TERRACING field, muddy field and NOT EASILY SINK.
Gather grain is smoothly discharged the screw-type grain discharge method that operates at high speed to minimize any possible damage. Another feature is that even rainy season and wet crops are easily working due to the fact that the durability self-priming blower fan and triangle caterpillar.
How is the performance?
Operation Efficiency: 0.05~0.1 hectare/hr
Improving overall operational efficiency is the simple and compact structure that contributes to saving both time and labor.
Max. Power:
12.5HP 192F DIESEL ENGINE
The reasonable power supply design makes it possible to complete operations in an exceptionally speedy manner.
Min. Loss: Less than 2%
Max. Operational Speed: 2.22m/s
Net Weight: 450KGS
Technical Parameters
| Model | 4L-0.9B |
| Dimension | Overall Length(mm) | 2720 |
| Overall Width(mm) | 1300 |
| Overall Height(mm) | 1210 |
| Weight | Rubber Wheel/Caterpillar (kgs) | 400/450 |
| Air-cooled single cylinder 4 stroke diesel engine |
| Engine | Model | 192F diesel |
| Displacement | 0.498 |
| Output(kw/hp) | 9.2/12.5 |
| Fuel Tank Capacity(L) | 5.5 |
| Driven System | Crawler | Track Gauge | Rubber lug wheel with thick rim |
| Width × Length | 255mm × 790mm |
| Ave. Pressure | 0.21Kpa |
| Clearance | 210mm (Minimum) |
| Transmission | Type | 3 - Range (3F / 1R) |
| Speed(m/s) | Low:0.4 Medium:0.7 High:2.2 |
| Steering | Type | Clutch and Brake |
| Cutting | Pickup Reel | Diameter × Width(mm) | 565 × 904.5 |
| Height Adjustment | Hydraulics |
| Cutting Bar Length(mm) | 1000 |
| Threshing | Revolutions(rpm) / Concave Area (m2) | 1257 / 0.728 |
| E - System | 4A, 12V lithium battery starting, lighting equipment with engine oil alarm system |
| Performance | Harvesting Performance(Hectare/Hour) | 0.05-0.1 |
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: Three years guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2. Q: What is your delivery time?
A: Normally, it takes 15-20 days to delivery after your T/T deposit receipt or L/C at sight
3.Q:How many harvesters can be loaded in one container?
A:1)20 Feet Container loads:
For Combine: 6 sets 4L-0.9B
2) 40 High Cube Container loads:
For Combine: 12 sets 4L-0.9B
4.Q:What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
PRODUCT DESCRIPTION OF 4L-1.0II COMBINE
Model: 4L-1.0II
Application: Rice, Straw, Barley
Harvest method: Cutting
Transmission: Soft Shaft
Certification: SGS, ISO9001:2008
Condition: New
Trademark: Mingsin
Type: Combine Harvester
Power Source: Diesel
Drive Type: V-belt
Portable Harvester Type: Combine Harvester
Color: Blue
Application Field: Agriculture
Transport Package: Steel Structure Wooden Case
Product Description
Small Combine Harvester 4L-1.0II, NEW ARRIVAL!
What is mini-combine harvester?
4L-1.0II is upgrade model of 4L-0.9 series mini combine harvester. It is full feeding, self-propelling, crawler track type combine harvester. With 16HP powerful engine, 1200mm wide cutter bar and hydraulic reel.
It adopts front-wheel-drive, triangle supporting and independent operation, combines harvester, threshing and cleaning functions in one machine. And it is characterized by its mini size, easy operation and superior performance and so on.
What can it do?
It is designed for harvesting of WHEAT, RICE and OATS. Suitable for NARROW, TERRACING and NOT EASILY SINK.
Gather grain is smoothly discharged the screw-type grain discharge method that operates at high speed to minimize any possible damage. Another feature is that even rainy season and wet crops are easily working due to the fact that the durability self-priming blower fan and triangle caterpillar.
How is the performance?
Operation Efficiency: 0.06~0.12 hectare/hr
Improving overall operational efficiency is the simple and compact structure that contributes to saving both time and labor.
Max. Power:
8.2HP KM12D500F DIESEL ENGINE(Exp. Type)
The reasonable power supply design makes it possible to complete operations in an exceptionally speedy manner.
Min. Loss: Less than 2%
Max. Operational Speed: 2.35m/s
Light Weight: 560KGS
Technical Parameters
| Model | 4L-1.0II |
| Dimension | Overall Length(mm) | 2860 |
| Overall Width(mm) | 1330 |
| Overall Height(mm) | 1310 |
| Weight | (kgs) | 560 |
| Air - cooled double cylinder diesel engine |
| Engine | Model | 16HP 2V840 Diesel engine |
| Output(kw/hp) | 12.0/16 |
| Crawler Track | 72 mm× 35Section×255 mm |
| Cutting head | Pickup Reel | Diameter × Width(mm) | 560 × 1150 |
| Height Adjustment | Hydraulics |
| Cutting Bar Length(mm) | 1200 |
| Threshing | Revolutions(rpm) / Concave Area (m2) | 880 / 0.868 |
| Performance | Harvesting Performance(Hectare/Hour) | 0.06-0.12 |
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: Three years guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2. Q: What is your delivery time?
A: Normally, it takes 15-20 days to delivery after your deposit receipt or L/C at sight
3.Q:How many harvesters can be loaded in one container?
A:1)20 Feet Container loads:
For Combine: 5 sets 4L-1.0II Plus
2) 40 High Cube Container loads:
For Combine: 10 sets 4L-1.0II Plus
4.Q:What is the after-sales service?
A:Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
>>
