SAE 100 R7 Soft Textile Fiber Braided High Pressure Insulation TPU Industrial Hydraulic Hose

Product Description

Product Description
The inner core: Thermoplastic elastomer.
The middle layer: 1&2 layer of braided high-resistance syntheyic fiber.
The outer layer: Pin Pricked anti-abrasion polyurethane.
Available twin and multi lines with diffferent hose combination and size. Also, special colors up on request.
Temperature Range:
For hydraulic fluid: -40ºC; +93ºC
For water based fluids and air Max+65ºC
Applications:
Suitable for various liquids and gases, such as mineral oil, vegetable oil, non combustible hydraulic oil, paint, solvent, coolant, water, carbon dioxide, oxygen, nitrogen, etc.

Product Parameters

INCH	ID. (mm)	OD. (mm)	WP.MAX			BP.MAX			TP.	Safe	Rmin.MIN
			MPa	Bar	Psi	MPa	Bar	Psi	Bar	Factor	mm
1/8	3.2	8.1	21	210	3045	84	840	12180	420	4:1	20
3/16	5	10	21	210	3045	84	840	12180	420	4:1	26
1/4	6.3	12.2	21	210	3045	84	840	12180	420	4:1	30
5/16	8	14.2	17.5	175	2538	70	700	10150	350	4:1	40
3/8	10	16	15.5	155	2248	62	620	8990	310	4:1	70
1/2	13	19.5	14	140	2030	56	560	8120	280	4:1	90
5/8	16.4	23	10.5	105	1500	42	420	6000	210	4:1	130
3/4	19.5	26.4	9	90	1300	36	360	5200	180	4:1	150
1	25.4	33.5	7	70	1000	28	280	4000	140	4:1	180

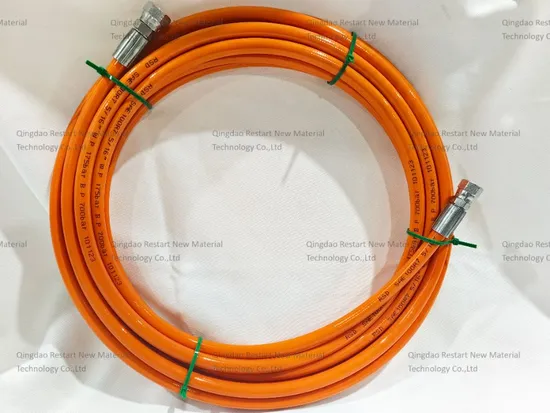

Detailed Photos
Other hot selling product:
Our factory

Company Profile
Qingdao Restart New Material Technology Co.,Ltd is a manufacturing enterprise specializing in the application and development of environmentally friendly new materials. The company and related investment companies provide low-carbon and environmentally friendly product solutions such as R7/R8 thermoplastic high-pressure hoses, Centralized lubrication system hoses,elevator traction steel belts, polyurethane elevator handrail belts, etc. We not only provide customers with reliable and cost effective standard products, but also continuously develop and launch new products according to their latest requirements, meeting the special requirements of the industry.
Our strict process control and raw material quality control have enabled us to pass ISO9001,ISO45001,and ISO14001 system certifications. The company maintains extensive cooperative relationships with international first-class material suppliers such as Wanhua Chemical, DuPont, and Arkema, and maintains strong competitiveness in the development of new materials and the application of new technologies.
Our mission is to make the world greener and life better, and we hope to become a "TPU application development leader" through professional expertise and unremitting efforts.

Certifications


FAQ
Q1:Are you factory or trading company?
A: We are factory, specialized in hose. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request
Q3:What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
