Computerized Plastic Pet Blow Molding Machine Made in China

Product Description

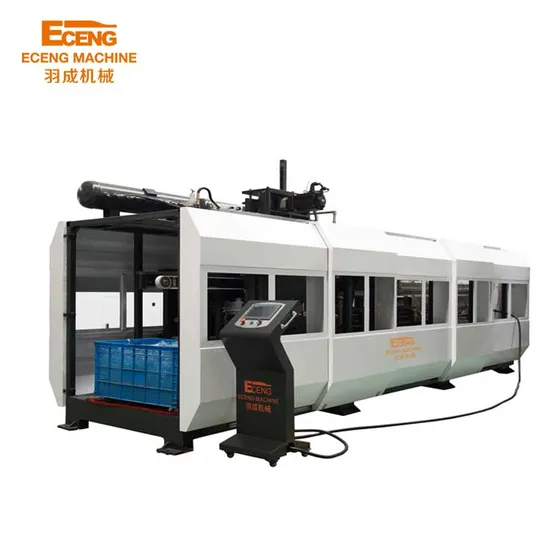

Computerized Plastic Pet Blow Molding Machine Made in China
Model type: K8 Our customers are all around the world.
Vietnam, Cambodia,Myanmar,Philippines,Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, Canada,UAE, Saudi Arabia, Malta, Romania, Bahrain, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe,Kenya, Mexico, Guatemala, Ecuador, Colombia, Venezuela,Peru,Argentina,Botswana.,Lebanon,oman,pakistan,Afghanistan,
Iran,Yemen,Jordan,Ghana,Brazil,mozambique,spain,poland,uzbekistan,kuwait,libya,venezuela,
turkey,tanzania,Israel,Iraq,chile,Mauritius.
K series fully-electric blow molding machine is developed by ECENG company according to the latest most advanced rotary blow molding machine technology nowadays,which is derived from the mechanical transmission structure of being infinitely close to rotary blow moldidndg mahcine.compared with the traditional linear blowing machine featuring advantages of simple operation,high mechanical linkage,good stability and energy saving,and can be inserted into Blowing-Filling-Capping combiblock flexibly.it is widely used in food,beverages,cosmetic,pharmaceutical containers production and has provided services to our customers over 40 countries around the world.
we are eager to keep researching ,supplying better service and stable machine to our customers,all what we do is to make sure we and our customer to be leader in plastic industry.
PARAMETER

Item	K4	K6	K8
Cavity	4	6	8
Theory output	6000-8500BPH	9000-12000	12000-16000
Max.volume	2L	2L	2L
Bottle mouth maximum overall diameter	28-38mm	28-38mm	28-38mm
Bottle biggest diameter	100mm	100mm	100mm
Bottle maximum height	330mm	330mm	330mm
Light tube quantity	16pcs	32pcs	32pcs
Light tube power	1.25KW	1.25KW	1.5KW
Maximum heating power	20KW	40KW	48KW
All electric machine installation	29KW	49KW	65KW
Actual consumption	30%-60%	30%-60%	30%-60%
Work pressure	5-6kg/c	5-6kg/c	5-6kg/c
Blow bottle pressure	25-45kg/c	25-45kg/c	25-45kg/c
Higher -pressure gas consumption	6000Ltr/min	8000Ltr/min	12000Ltr/min
Work pressure	5-6 kg/c	5-6 kg/c	5-6 kg/c
Temperature range	10ºC	10ºC	10ºC
Consumption	8000kcal/hr	8000kcal/hr	12000kcal/hr
Forzen water flow	30L/min	88L/min	88L/min
Size of the machine	3.6*1.6*1.9(m)	4.8x1.6x1.9	5.78x1.6x1.9
Weight of the machine	4.3ton	6.1ton	7.45ton

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
ECENG machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
Q6: Where is your factory located?
A6: Our factory,near Shanghai & Ningbo port, is located in Zhangjiagang,Jiangsu.

Q7: How about quality control in your factory?
A7: " Quality is the key point, do what customers need"
Eceng machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

Q8: Do you provide bottle blow mould and air compresor ?
A8: Yes , we provide complete system and you will no need to find the suitable air compressor and chiller...etc..

Q9: What is the language of the PLC and touch panel?
A9: Don't worry, we will translate the language in English,Spanish or any other language, to make sure you will have an easy operation .
Q10: Do you have reference project?
A10: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q11: Do you have agent and after-service stations?
A11: So far we have agent in Thailand,Vietnam,Columbia,Indonesia. welcome to join us!
Q12: Do you provide customized service
A12: We can design the machines according to your requirements(material ,power,filling drink,different bottle neck and bottle design,logo design and so on),give you suggestions for your unique needs.

---
