Two Rolls Open Rubber Mixing Mill Rubber Mixing

Product Description

Product Description

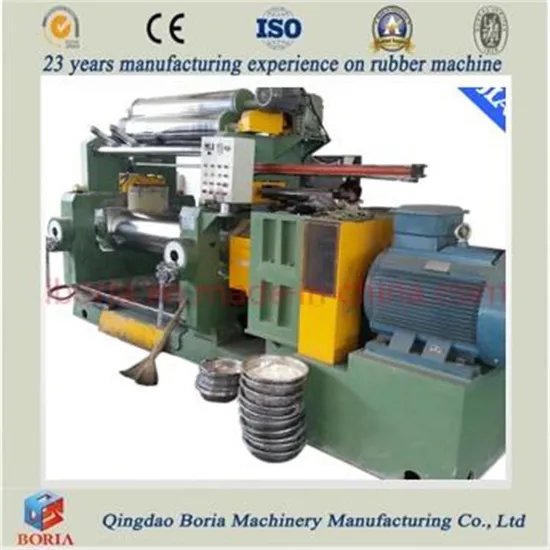

Open Mill Rubber Mixing Machine Made in China
Rubber Mixing Mill is mainly applicable for plastic, warming and mixing rubber. Machine with overturning equipment for rubber.
1. This Rubber Mixer mainly works for thermal refining, mixing and plastic of raw rubber etc.
2. The roll of this machine is made of cold hard cast iron LTG-H, whose surface rigidity is HS68-75. There are three types of roll, such as cored smooth roll, cored fluted roll, circumferentially drilled smooth roll. The roll adopts double auto-centering rolling bearings, which are lubricated by lubrication grease.
3. The Rubber Mixer reducer has hard tooth surface. All the drive gears of reducer are concentrated inside the case, which is well lubricating with spray type and has long useful life.
4. PLC control method
5. This Rubber Machine no oil leakage, and pressure steady, small noise.
6. This Rubber Machine is tailored structure, operate conveniently, and many speeds available. Rubber Machinery (Mixing Machine, Vulcanizing Machine, Kneading Machine, calender machine)Rubber Machinery (Mixing Machine, Vulcanizing Machine, Kneading Machine, calender machine)

	Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter	mm	160	250	360	400	450	550	560-510	660	710
Roll working length		320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed	r/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls		01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space	mm	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity	kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power	kW	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L	mm	1133	2722	4200	4920	5405	6646	6270	7280	8185
W	mm	920	1115	1780	1780	1740	2736	2282	3400	3910
H	mm	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight	T	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

---
