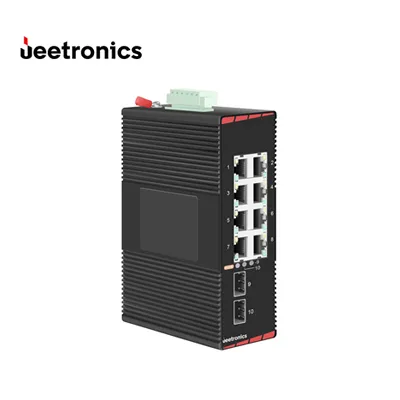

8X1000base-Tx to 1X 1000base-Fx SFP Port Unmanaged Gigabit Ethernet Poe Industrial Switch

Product Description

JTGA108-P-P 8x 10/100/1000Base-TX to 1x 1000Base-FX SFP Port Unmanaged Gigabit Ethernet PoE Industrial Switch Complies with IEEE 802.3 , IEEE 802.3u , IEEE 802.3ab , IEEE 802.3z 1000BASE-X Gigabit Fiber IEEE 802.3x , IEEE 802.3af/at PoE 8x 10/100/1000Base-TX with IEEE 802.3af/at PoE 1x 1000Base-FX Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Redundant Power Design Power Polarity Reverse Protection Overload Current Protection Max 160KM based on SFP spec Operating Case Temperature : -40~75C DIN-Rail or Wall Mountable IP30 Corrosion resistant aluminum case

Data Rate	10/100/1000Mbps
Device Type	Unmanaged
Interface Characteristics
Copper Interface	8x 10/100/1000Base-TX (IEEE 802.3af/at PoE)
Fiber Interface	1x 1000Base-FX
Wavelength	Based on SFP Spec
Media	Based on SFP Spec
Distance	Based on SFP Spec
Connector	SFP Port
LED indicators	PWR (power supply);
	FL/A (optical link/action)
	FDX (FX full duplex),
	TL/A (twisted pairs link/action)
	100 (100M transmission rate of twisted pairs),
	FX (100M transmission rate of optical fiber)
Technology
Standards and Protocols	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3z 1000BASE-X Gigabit Fiber
	IEEE 802.3x Full duplex and flow control
	IEEE 802.3af/at PoE
Processing Type	Store and Forward
Flow Control	Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
Power
Power Input	DC 12~52V
PoE Standard	IEEE 802.3af/at PoE
PoE Power Budget	30W Per PoE Port
Power Consumption	<4W
Protection	Overload current protection
	Reverse polarity protection
Switch Properties
Switching Capacity	18G
Forwarding Rate	1.488Mbps
MAC address table	2K
Packet Buffer	2MB
Jumbo Frame	10K
Delay	<3μs
Physical
Casing Mat.	Aluminum, IP30
Dimensions	143 x 101 x 44mm
Installation	DIN-Rail
Environmental	Operating temperature : -10~55ºC
	Storage Temperature: -40~85ºC
	Relative Humidity: 5% to 95% non-condensing
Regulatory
ISO	Manufactured in ISO-9001 facility
Safety & Emission	CE , FCC, RoHS
EMI	FCC Part 15B Class A
	EN 61000-6-4
	EN 61000-3-2
	EN 61000-3-3
EMS	EN 61000-6-2
	EN 61000-4-2 (ESD Standards)
	EN 61000-4-3 (Radiated RFI Standards)
	EN 61000-4-4 (Burst Standards)
	EN 61000-4-5 (Surge Standards)
	EN 61000-4-6 (Induced RFI Standards)
	EN 61000-4-8 (Magnetic Field Standards)
Stability	IEC 60068-2-6 Fc (Vibration)
	IEC 60068-2-27 Ea (Shock)
	IEC 60068-2-32 Ed (Free fall w/package)
Realiability
MTBF	>50,000Hrs

Ordering information :

P/N	Category	Device Type	Copper Interface	Fiber Interface	Wavelength	Media	Distance	Connector	Power Input
JTGA208-P-P	PoE Industrial Ethernet Switch	Unmanaged	8x 10/100/1000Base-TX	2x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA102-P-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA102-13S2-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	MMF	2km	Dual SC	DC 12~52V
JTGA102-13S20-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	20km	Dual SC	DC 12~52V
JTGA102-13S40-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	40km	Dual SC	DC 12~52V
JTGA102-15S60-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	60km	Dual SC	DC 12~52V
JTGA102-15S80-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	80km	Dual SC	DC 12~52V
JTGA102-B35S20-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	20km	Single SC	DC 12~52V
JTGA102-B53S20-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	20km	Single SC	DC 12~52V
JTGA102-B35S40-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	40km	Single SC	DC 12~52V
JTGA102-B53S40-P	PoE Industrial Ethernet Switch	Unmanaged	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	40km	Single SC	DC 12~52V
JTGA104-P-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA104-13S2-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	MMF	2km	Dual SC	DC 12~52V
JTGA104-13S20-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	20km	Dual SC	DC 12~52V
JTGA104-13S40-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	40km	Dual SC	DC 12~52V
JTGA104-15S60-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	60km	Dual SC	DC 12~52V
JTGA104-15S80-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	80km	Dual SC	DC 12~52V
JTGA104-B35S20-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	20km	Single SC	DC 12~52V
JTGA104-B53S20-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	20km	Single SC	DC 12~52V
JTGA104-B35S40-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	40km	Single SC	DC 12~52V
JTGA104-B53S40-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	40km	Single SC	DC 12~52V
JTGA005-P	PoE Industrial Ethernet Switch	Unmanaged	5x 10/100/1000Base-TX	/	/	/	/	/	DC 12~52V
JTGA008-P	PoE Industrial Ethernet Switch	Unmanaged	8x 10/100/1000Base-TX	/	/	/	/	/	DC 12~52V
JTGA204-P-P	PoE Industrial Ethernet Switch	Unmanaged	4x 10/100/1000Base-TX	2x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA108-P-P	PoE Industrial Ethernet Switch	Unmanaged	8x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V

Certifications

FAQ
Q: Is it all right to make custmer's own brand name ?
A: Yes, we are professional on ODM/OEM, If there is certain order quantity, we can provide including printing, Logo and customized model for you.
Q: Are you a manufacturer or trading company ?
A: we are professional manufacturer, our main products include POE switch, Industrial switch, fiber media converters and SFP modules.
Q: How soon can I get response from your team ?
A: Within 6 hours. We will response you as soon as possible.
Q: How long can I get product samples ?
A: Usually within thress days, but all depends on your requirement.

---
