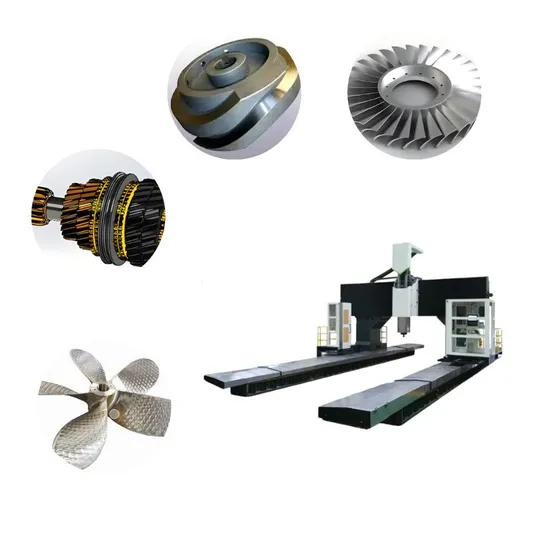

Gantry Machining Center Ysmd-14042/16042/18042/21042

Product Description

Gantry Machining Center YSMD-14042/16042/18042/21042
Square Ram and Sliding Seat Structure
Dimension:500x500, Heavy-Duty Design;
Direct-Driven Design;
Large-Size and Heavy-Duty design ensures thatthe ram is firmly connected;* Three extended sliders at the top and four standardsliders at the bottom.
Italy BF Gear Box
High performance speed, low noise. It couldexpand motor constant power range. It is easyto install. The machine can be used in conjunctionwith multiple series of motors. It can adapt tohigh-strength tension, small size.
Dual Motor with Anti-Backlash Transmission Structure.
High Precision, Heavy Load, High Speed, Low Noise, Longer Service Life.

Model No.	YSMD-14042	YSMD-16042	YSMD-18042	YSMD-21042
Item No.
Travel
X-Axis	14000 mm	16000mm	18000mm	21000 mm
Y-Axis	4200 mm	4200 mm	4200 mm	4200 mm
Z-Axis	1500 mm	1500 mm	1500 mm	1500 mm
Spindle nose to worktable	350-1850 mm	350-1850 mm	350-1850 mm	350-1850 mm
Three-Axis guideway	XY Heavy Load Roller Linear Guideway Z-Axis T-Type Ram
Door width	4200 mm	4200 mm	4200 mm	4200 mm
Worktable
Worktable Size (L*W)	14000x3500 mm	16000x3500 mm	18000x3500 mm	21000x3500 mm
Max. Table load	50 T	50 T	50 T	50 T
T-Slot	36x200 mm	36x200 mm	36x200 mm	36x200 mm
SPINDLE
Spindle Type	BBT-50	BBT-50	BBT-50	BBT-50
Spindle R.P.M.	6000 rpm	6000 rpm	6000 rpm	6000 rpm

Spindle R.P.M.	6000 rpm	6000 rpm	6000 rpm	6000 rpm
Spindle Drive Type	DDS	DDS	DDS	DDS
Feedrate						Feedrate
X/Y/Z Rapid Traverse	6/8/8 m/min	6/8/8 m/min	6/8/8 m/min	6/8/8 m/min
X/Y/Z/ Cutting Feedrate	6 m/min	6 m/min	6 m/min	6 m/min
Tool changer						Tool changer
Tool changer ATC	24(Option:40/60)	24(Option:40/60)	24(Option:40/60)	24(Option:40/60)
Motor						Motor
Spindle Motor	17-42 kw	17-42 kw	17-42 kw	17-42 kw
Three-Axis Servo Motor	5.2/5.2/5.2 KW	5.2/5.2/5.2 KW	5.2/5.2/5.2 KW	5.2/5.2/5.2 KW
Accuracy						Accuracy
Accuracy	0.07/0.035/0.02 mm	0.07/0.035/0.02 mm	0.07/0.035/0.02 mm	0.07/0.035/0.02 mm
Repeatability	0.055/0.025/0.015mm	0.055/0.025/0.015mm	0.055/0.025/0.015mm	0.055/0.025/0.015mm
Power Required
Power Requirement	60 kva	60 kva	60 kva	60 kva
Air Pressure Requirement	6ˆ8 kg/cm2	6ˆ8 kg/cm2	6ˆ8 kg/cm2	6ˆ8 kg/cm2
Others							Others
Extemnal Dimensions(LWH)	18000x5860x5800 mm	20000x5860x5800 mm	22000x5860x5800 mm	24000x5860x5800 mm
Gross Weight	135 t	145 t	155 t	170 t

Standard Accessories	Options
Spindle Coolant System	Optical Linear Scale
Automatic Lubricating System	CTS
Semi-Enclosed Guard	20T/40T/60TATC
Rigid Tapping	Workpieces Probe
Heat Exchange for Electric Cabinet	Chip Conveyor System
Dual-Screw Type Chip Conweyor	Rotary Table
Dual LED Work Light	Oil Mist System
LED 3 Color Warning Light	Oil Skimmer
Chain Type Chip Conveyor and Cart	Air Conditioner
Geared Box	Manual/Semi-Auto 90" Milling Head
Leveling Bolts and Pads	Auto Parts Probe Measuring System
M30 Auto Off

Specifications:

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
