X9 Series Ultra-High Bandwidth LCD/LED Seamless Videowall Processor Support Multi-Window Matrix Switcher

Product Description

Conference System X9 Series Ultra-High Bandwidth LCD/LED Videowall Processor support Multi-Window
Main Features
Seamless switching 16 x 16 matrix / router(maximum up to 144x144 with bigger cabinet)
Support Up to 16 displays splicing and processing
Display up to 32 layers
OSD text overlay feature for subtitling and messaging
Rich of modules for input and output
Redundant hot swap power supply option
Smart temperature control
Videowall Configuration Software is available.
Web control interface for PC,Andorid & IOS control
Support LCD/LED video wall

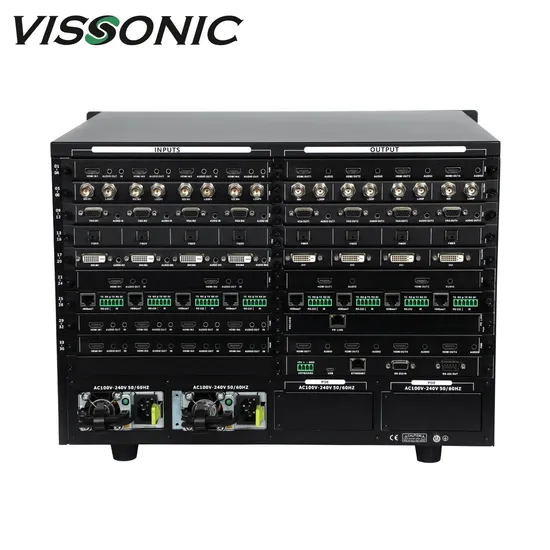

X9 series Modular video wall processor can realize graphics processing and seamless switching flexibly. The matrix adopts high-performance hardware design, perfectly supports a variety of high-definition digital / analog signal switching and processing, and supports two-way RS-232, two-way IR signal assigned switching function. It can also divide a completed image signal into several signals assigned to several different display unites, forming a large display screen to display dynamic images. It provides a one-stop solution for various industries to assign, switch and process a variety of video and control signals, which can be widely used in radio and television engineering, multimedia conference room, large-screen display engineering, television teaching, intelligent traffic management centers, command and control centers and other places.
X9 series Modular video wall processor contains 0808,1616,3636,7272 and other models, its signal input/output interface contains HDMI, DVI, VGA, HDBaseT, SDI, optical fiber and other video interfaces. Leading all-digital signal processing technology ensures undistorted processing, sending top quality screen to the display terminal. With customized configuration of various types of the same or different input/output boards, single interface type or multi interface type of matrix can be formed, such as optical fiber matrix, HDMI matrix, DVI matrix, CAT5 matrix, VGA matrix, YUV matrix, Video matrix and so on.
X9 series Modular video wall processor provides a variety of control modes, with remote control operation, RS-485 extended keyboard, but also provides two standard RS-232 communication interfaces and network ports, convenient for users to coordinate it with various remote control devices.

Model Specifications	VW-VM0808	VW-VM1616	VW-VM3636	VW-VM7272
Interface
Number of input boards/input channels	2/8	4/16	9/36	18/72
Number of output boards/output channels	2/8	4/16	9/36	18/72
Supported input board type	VW-HM4I;VW-DV4I; VW-HD4I; VW-VA4I; VW-SF4I; VW-SD4I
Supported seamless output board type	VW-HM4O;VW-DV4O;VW-HD4O;VW-VA4O;VW-SF4O; VW-SD4O;
Supported stitching output board type	VP-HM4O;VP-DV4O;VP-HD4O;VP-VA4O;VP-SF4O;VP-SD4O;
Interface bandwidth	6.75Gbps
Serial port control
Serial control interface	RS-232,9 pin female D type interface and 9 pin male D type interface
Baud rate and protocol	Baud rate: 9600, data bits: 8 bits, stop bits: 1 bit, no parity check bit
Serial control interface structure	9 pin female D type interface : 2 = TX,3 = RX,5 = GND; 9 pin male D type interface : 2 = RX,3 =TX,5 = GND
KEYBOARD control interface
Keyboard control interface	Four-way 3.8mm phoenix interface
Operation method	To use with extended keyboard MCP100
Keyboard control interface structure	+5V=DC5V , + = DATA+, -=DATA- GND = signal ground
Ethernet control
Ethernet control interface	RJ-45 female interface
Ethernet control protocol	TCP/IP
Ethernet control speed rate	Adaptive 10M / 100M, full-duplex or half-duplex
Specifications
System power	100VAC ~ 240VAC,50/60 Hz, International adaptive power
Storage, work temperature	0~ +50°C
Storage, work humidity	20% ~70%
Chassis size	2U	3U	7U	12U
Product weight ( without boards)	About 5Kg	About 7Kg	About 16Kg	About 29Kg
Full power ( without boards)	About 18W		About 30W
Size	445x400x88	445x400x132	445x400x310	445x400x532
Mean time between failures	30,000 hours
Quality guarantee	One year warranty and lifetime maintenance
