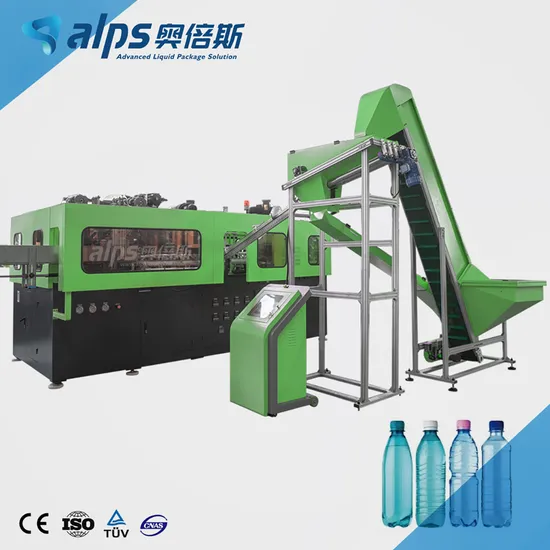

Automatic Plastic Water Bottle Blow Molding Machine

Product Description

Automatic PET Bottle Stretch Blowing Molding MachineThe two-step Pet stretch blow moulding machine which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.
Application:

Beverage Bottle Water Bottle / Beverage bottle / Juice Bottle / Coffee bottle....

Food & Daily Chemical bottle Food oil bottle / Cleaning liquid bottle / Cosmetic bottle /medical bottle ....

Technical Parameter :

Model	BL-A2	BL-A4S	BL-A6S	BL-A9S
Cavities	2cavities	4cavities	6cavities	8cavities
Capacity	2000 bottles/hour	6000 bottles/hour	9000 bottles/hour	12000 bottles/hour
Application	Pet stretch blow moulding machine
Bottle volume	0.1-2L	0.1-2L	0.1-2L	0.1-2L
Body diameter	<100mm	<100mm	<100mm	<100mm
Max bottle height	<310mm	<310mm	<310mm	<310mm
Main power	25KW	49KW	73KW	85KW
Hp air compressor	2.0 m3/min	2.4 m3/min	3.6m3/min	6.0m3/min
LP air compressor	1.0 m3/min	1.6 m3/min	2.0 m3/min	2.0 m3/min
Machine sizes	1.9*1.3*2m	3.2*1.3*2m	3.9*1.3*2m	4.5*1.3*2m
Weight	2000kg	3600kg	3800kg	4500kg

Main Features
i. The man-machine interface is easy to operate. Everything is computerized, including temperature adjustment and preform distribution.
ii. Preform unscrambling, loading, bottle handling and ordering are all operated by stainless steel manipulator automatically without a second contamination.
iii. The circulating chilling water system can protect the bottle neck against deformation when the preform is being heated.
iv.The homothermal heater adopts auto reflection and closed loop adjusting system which have the power supplied constantly in proportion, not affected by the fluctuation of voltage. The conveying chain is short pitched and paratactic, which helps to realize slow heating and low power consumption. As a result, the preform can be heated evenly and easy to blow.
iv. The positioned installation of molds makes it possible to change molds easily within 30 minutes.
v. All the critical parts we use for the machines, such as the electrical, hydraulic and pneumatic components, servo motor, etc, are famous branded parts imported from Japan, USA and Europe,which ensures the stability and long life of our equipments.
Detail pictures

	Stepping mechanism: Type : Servo motor drive Brand: Yaskawa (Japan) Servo motor's synchronical high speed and precise positioning. Slide stepping by orbit is swift and stable with less cycle time and higher efficiency.
Mold movement mechanism Type : Servo motor drive Brand: Yaskawa (Japan) Ensures that the series of the mold motions are simple, accurate, consistent and speedy, making cycle time 0.3~0.5 seconds.
	Stretching mechanism & Mould Type: Servo motor drive Brand: Yaskawa (Japan) Ensures the synchronicity of the motion of the rods and makes it easier to do adjustment prior to production.
Heating tunnel Type: Eco friendly & Energy save Brand: Lianggu (China) Each lamp pipe in the heater can be controlled individually. Moreover, the heaters are equipped with the converter controlled circulating air cooling system that can keep the temperature constant inside the heater and preforms heated consistently

Main componetns:
Company introduction
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification :
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.

---
