Product Description
Product Description

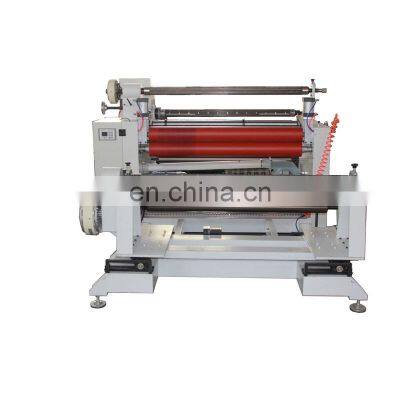

Product DescriptionSpecificationitemvalueApplicable IndustriesManufacturing Plant, jumbo roll adhesive tape slitting machineShowroom Locationjumbo roll adhesive tape slitting machineConditionNewTypeSlitting RewinderComputerizedYesPlace of OriginChinaJiangsuBrand NameDAPENG MACHINERYVoltage220V60HZ or 380V/50HZDimension(L*W*H)2400*2000*1300mmWeight1500kgWarranty12 monthProduction Capacity180 m/minKey Selling PointsHigh-accuracyMax. workable width1300mmMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing Typejumbo roll adhesive tape slitting machineWarranty of core components1 YearCore ComponentsMotorPLC BrandMITSUBISHIProduct namejumbo roll adhesive tape slitting machineCutting materialspaper/foam/adhesive tape/filmCutting speed1-120m per minuteCutting thickness0.01-5mmOutput paper width10-1300mmoutput diameter76-1000mmrewinding diametermax 500mmcore diameter2 inch 3 inch 6 inchmin slitting width25mm or 10mmPower Supply380V/3Phase/4WireSpecificationModel1300 multifunction slitting machine1600 multifunction slitting machine650 multifunction slitting machineMax Feeding Width ( mm )13001600650Main Engineer Power ( KW )662.2Speed (T/M )808080Size ( mm )2400*2000*13002400*2300*13002400*1700*1300Weight (kg)120015001000Feeding diameter ( mm )600800600Rewinding diameter ( mm )450450450precision ( mm )±0.10±0.10±0.10Power380V 50HZ380V 50HZ220V 50HzAutomatic insulation paper slitting machineSticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting MachineryFunctional characteristics:This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding andreceiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted todetect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification andmetering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.There are two selection ofr main engine, single electric motor, double electric motors.Purpose:It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminumfoil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,leather, clothes making, plastic, etc.Charatertistics and Functions1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding andreceiving materials.2. Imported magnetic powder clutch is adopted to control the tension.3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectificationcontrol.4. Automatic detection, rectification and metering can be realized.5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintainPurpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,aluminum foil, OPP, PE, PVC, sheet, cloth, etc.2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Features for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery1. The max width: 650mm / 1300mm / 1600mm2. The minimum slitting width: 8-25mm3. Material thickness range: 0.05-3mm4. Tolerence: 0.2mm, Precision: 0.1mm5. The speed: 80m/min6. Under CE and ISO7. Manufacturer experience: 12 years8. Export experience:10yearsStandard machine parts showing as below :automatic slitting machineCloth cutting machineUnwinding part description 3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too Magnetic powder brake 100N also can be 150 or 200 that as required EPC include the controller , driver and sensor laminating and pulling material part the up part unwinding is optional to use or not when just one material slitting , then it not use and when two material unwinding, it is function of cold laminatingSlitting part and waste trimming partthe blade size upwards is standard of 1300mm machine size , other larger diameter also optional and down part can be Nylon roller optional when need slitting EVA sponge mterials slitting blade 8 sets is standard , you can buy more when required and minimum slitting width 10mm is optionalRewinding part2pcs 3 inch inflatable rewinding airshaft , magnetic powder clutch 50 N control the rewinding tension double main motor 2 pneumatic arms to hold the rewinding shaft the rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optionaloperation board the slitting speed and the tension can be set on this control panel , with meter counter cloth cutting machine different angle viewcloth cutting machine different angle view :
>>
