Four-Head Wooden Pallets Feet Making Machine

Product Description

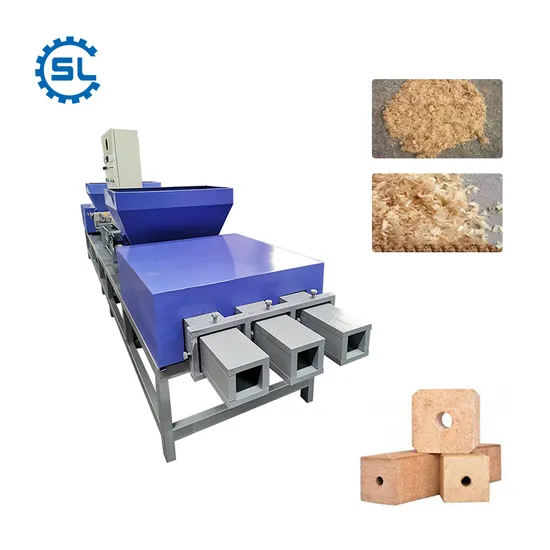

Four-head wooden pallets feet making machine

Product Description
Brief Introduce for the complete wooden pallet blocks production line:
Crusher--drying equipment--Gluing mixer--Wooden blocks extruder--Auto blocks cutter
Wooden Pallet Block Extruding Machine introduce:
wood pallet block machine is used to produce wood blocks for wood pallets, also called compressed wood block making machine.
Pallet block making machine mainly includes three machine types:
Two-Head(one head each side),Four-Heads(two head each side) and Six- Head(Three heads each side).

This wooden blocks are mainly used to make the pallet feet which is for the transportation or storage pallet. The final product could get the E1 grade. The pallet feet could be solid without hole in the center, also could be hollow.
Product Parameters

Size	Length	Width	Height	Weight(Kg)	Motor(KW)	Capacity
75*75	4600	700	1420	1050	18.4	3-5 m3/24h
80*80	4600	700	1420	1100	18.4	3-5 m3/24h
80*100	4600	700	1420	1150	18.4	3-5 m3/24h
90*90	4600	700	1420	1200	18.4	3-5 m3/24h
95*95	4600	700	1420	1250	18.4	3-5 m3/24h
100*100	4600	700	1420	1300	18.4	3-5 m3/24h

Note:
The above is according to four-head wood pallet block making machine.
The block size can be customed according to your requirements.
Certifications
Packaging & Shipping

Our Advantages
Advantages for the final blocks from sawdust Pallet Block Hot Press Machine
A. As all blocks are extruded by hot pressing, so they are Free of Fumigation.
B. Can efficiently recycle some wood wastes.
C. Easy operation. one person can operate several machines.
D. Block Density can get to 550-600kg/CBM.


Before quotation, below questions need to be confirmed,
1, What is the block size required ?
2, hollow block or solid block?
3, Need one block machine or a complete blocks production line ?
4, Need a complete blocks production line, please tell the raw material situation(Raw materials size, moisture, you also can send picture if not sure)

---
