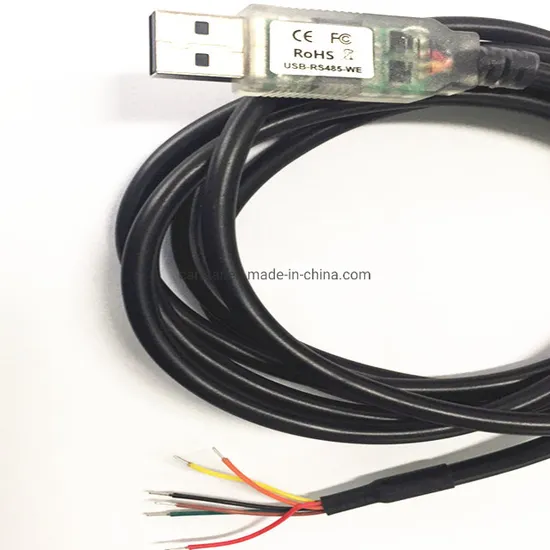

FT232r USB to RS485 Cable Converter, Panel Mount Ftdi USB-RS485-We-1800-Bt-Cable

Product Description

RS485 communication cable,telecommunication cable for communication network/
FTDI USB RS485 Adapter Cable RS485 to USB Converter
Product Description
FTDI USB RS485 CONVERTER CABLE, USB TO RS485 SERIAL WIRE END WIN8 WIN10 ANDROID
USB RS485 adapter
USB2.0. full speed 12M support
FT232 USB RS485 cable, signals compatible with USB-RS485-WE-1800-BT
With 2 LEDs for data+, data- transfering
Red-VCC(5v),Black-GND,White - Data+, Green - Data-
FT232RL + SP485LEEN chip
Support Android, Support Win 10, 8,8.1, Win 7, XP, 2000, Linux, Mac OS
Integrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Half duplex, non-isolated
300 ~ 1Mbps baud rate
Up to 5km distrance transfering
1.8mtr in length.
ABS USB housing, openable for testing
100% double test
PE zipper lock bag for each

FTDI FT232 usb to rs485 uart serial converter cable ftdi USB-RS485-WE-5000-BT-Cable,USB to RS485 Serial Cable Product Description This Caratar USB-RS485 cables are USB to RS485 levels serial converters. The cables include FTDI's FT232RL USB to serial UART interface IC device, which handles all the USB signalling, and protocols, plus an appropriate transceiver. The cable provides a fast, simple method to connect equipment with an RS485 interface to USB.usb rs485 ftdi/usb rs485 cable Baud Rate: 3Mbaud Cable Length - Imperial: 6ft Cable Length - Metric: 1.8m Chip Type: FT232R Conversion Type: USB to RS485 Converter cable Converter Connector Type: Free / Stripped End Product Features 1.USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.or ftdi usb-to-ttl (serial) cable 5v 2.Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable. 3.Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions. 4.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity. 5.Internal EEPROM with user writeable area. 6.Data transfer rates from 300 baud to 3 Mbaud. 7.Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector. 8.Extended temperature range (-40°C to +85°C). 9.Electronics available as separate PCB. Customized for other cable too :High quality ftdi usb rs232 cable rs232 to rs485 converter cable,RJ45,8P8C,10P10C Detailed Images Product Application USB to serial RS485 level converter. Upgrading legacy peripherals to USB. Interface Microcontroller UART or I/O to USB. Interface FPGA or PLD to USB. USB Instrumentation PC interface. USB industrial control. USB password protected file transfers Detailed Images Related Products More USB to RS-485 Converter USB-RS485 cable , you can choice as below list for refernce or other customized cable such as : TTL-232R-Rpi | FTDI Chip USB to UART Cable for Raspberry Pi, TTL-232R-Rpi FTDI Chip/RS232 to RS422/RS485 Adapters and Converters/USB RS-232 DB9 Male Serial Adapter Converter with Prolific Chip Part Number FTDI Chipset UART Connector Type Max UART Baud Rate Cable Length Additional Voltage Output Level (If available) USB-RS485-WE-1800-BT FT232R Wire-ended 3 Mbaud 1.8m 0V USB-RS485-WE-5000-BT FT232R Wire-ended 3 Mbaud 5m 0V USB-RS485-PCB(PCB only) FT232R - 3 Mbaud USB connector with PCB only Default configuration - 0V Our Services also below list is aviliable too , for reference here USB-RS485-WE-1800-BT Ftdi Cable, Usb-RS485 USB-RS485 converter cable provides a USB to RS485 FTDI USB-RS485-WE-1800-BT CABLE USB-RS485 SERIAL CONVERTER FTDI USB-RS485 console cable USB to RS485 Converter USB-RS485 RJ45 cable or Type C cable

ftdi usb rs485 cable, compatible usb rs485 we 1800 bt
half duplex, non isolated
Standard 10k pull up & down resistor, 120R terminal resistor
usb2.0 standard, full speed 12M support
On-board signals: Data+, Data-, VCC5V, GND
ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift
6 core, 26AWG, bare copper, PVC jacket, OD5.0mm
24AWG wire not suitable for RJ45/rj12 etc
1.8mtr in length
Compatible with ftdi usb-rs485-we-bt signals

Detailed Images
Introduction
The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.

USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play
USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.


Product Features
RS-485 interfaces supported.
RS-485 interface DB PIN connector .
Maximum RS-485 cable length: 1200m
Transmission rate 300bps to 1Mbps.
Maximum number of devides in the RS485
network:Half Duplex to 32 devices
Remote wake-up and power supply management supported.
+/-15KV ESD Protect.
Direct USB power without external power supply.
Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.
Windows95/98/2000/XP and NT-IMAG supported.
Introducing the FT232r USB RS485 Converter, a cutting-edge solution designed to meet the demands of modern businesses. This Panel Mount Ftdi USB-RS485-We-1800-Bt-Cable is the ultimate USB to RS485 converter cable that seamlessly bridges the gap between USB and serial communication. With its exceptional performance and reliability, this converter cable is the perfect choice for businesses seeking a seamless and efficient data transfer solution.
The USB to RS485 Uart Serial Converter Cable is a versatile tool that enables the conversion of USB signals to RS485, allowing for seamless communication between USB devices and serial ports. This converter cable is specifically designed to provide a reliable and efficient connection, ensuring smooth data transfer and minimizing any potential disruptions.
With the USB to Serial Port RS485 Converter, businesses can effortlessly connect their USB devices to RS485 networks, enabling them to communicate with a wide range of devices such as industrial equipment, sensors, and other serial devices. This converter cable is equipped with advanced technology that ensures stable and secure data transmission, making it an ideal choice for businesses operating in various industries.
The USB-RS485-We-5000-Bt Converter Cable is a high-quality solution that offers exceptional performance and reliability. Its panel mount design allows for easy installation and integration into existing systems, making it a convenient choice for businesses looking to upgrade their communication infrastructure.
With its user-friendly interface and plug-and-play functionality, this converter cable is incredibly easy to use, eliminating the need for complex installations or configurations. Simply connect the USB-RS485-We-5000-Bt Converter Cable to your USB device and enjoy seamless communication with your RS485 network.
In conclusion, the FT232r USB RS485 Converter is the ultimate solution for businesses seeking a reliable and efficient USB to RS485 communication tool. With its exceptional performance, user-friendly interface, and seamless integration capabilities, this converter cable is the perfect choice for businesses operating in various industries. Upgrade your communication infrastructure today and experience the benefits of this state-of-the-art converter cable.

---
